chemical random tower packing 25mm 50mm PVC CPVC plastic pall ring

Product Description

Product Description
Product Description

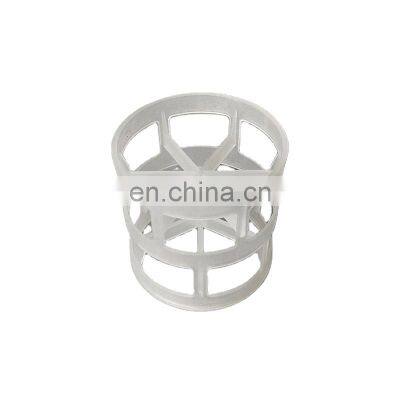

chemical random tower packing 25mm 50mm PVC CPVC plastic pall ring
Plastic tower packing filter media column packing is an advanced improvement of rasching ring, the walls of it is open, height and diameter are the same and it has 4 diametrical ribs towards the inside of each "floor". Its structure improves distribution of gas-liquid and its efficiency can be improved above 50% and only has half of pressure drop compared with rasching ring.
Specification

Material	Model	Size	Number per volume	Surface area	Void Volume	Dry Packing Factor
				D*H*δ mm	n/m3	m2/m3	%	m-1
PP PVC PVDD and so on	Dg16	16×16×1.0	180000	274	90	376
		Dg25	25×25×1.2	49000	213	91	285
		Dg38	38×38×1.4	13600	151	91	200
		Dg50	50×50×1.5	6300	100	92	130
		Dg76	76×76×2.6	1830	72	92	92

Performance of plastic tower packing:
* Higher capacity and lower pressure drop than ceramic packing.
* Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
* Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
* Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
* Ring and spoke construction provides high mechanical strength, which allows use in deep beds.
Application of plastic pall ring packing:
Widely used in chemical industry, Alkali industry ,protection of environmental, petroleum industry ,coal gas industry,etc .It’s
available for the distillation and absorption of a liquid and gas, atmospheric and vacuum distillation unit, crude distillation
unit, desulphurization system, gas liquid separator/separate of the gas and liquid etc.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What's the MOQ?
A: Our MOQ is 1cubic meter. The price will be a lillte higher if the quantity is less than 1 cbm.2. Are you factory?
A:Yes, we are professional manufacturer of plastic tower packing with more than 10years experience.
