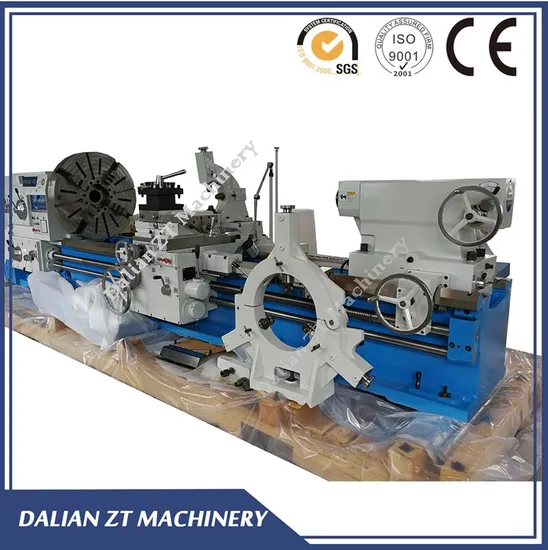

CWA6185x4000 Horizontal Conventional Large Heavy Lathe (4T Loading)

Product Description

Features:
It has the characteristics of high precision, high power, high rigidity, excellent manufacturing, and complete functions. Its main components and structures have been optimized and well designed. Now it has been verified by many users. This model of lathe has obvious advantages: high accuracy, high efficiency and high reliability. The application of the main drive frequency conversion speed regulation system has not only been highly favored by users, but also second to none in the industry, and is now in mass production.

Item	CWA6185x1500	CWA6185x3000	CWA6185x4000	CWA6185x5000
MAX. SWING OVER BED	850 mm	850 mm	850 mm	850 mm
MAX. SWING OVER CROSS SLIDE	520 mm	520 mm	520 mm	520 mm
MAX. LENGTH OF WORKPIECE	1,500 mm	3,000mm	4,000mm	5,000mm
MAX. LENGTH TO BE MACHINED	1,300 mm	2,800mm	3,800mm	4,800mm
MAX. WIDTH OF GUIDEWAY	600 mm	600 mm	600 mm	600 mm
MAX. WEIGHT OF WORK PIECE BETWEEN CENTERS	4,000 KG	4,000 KG	4,000 KG	4,000 KG
SPINDLE NOSE	ISO A2-11	ISO A2-11	ISO A2-11	ISO A2-11
SPINDLE TAPER HOLE	METRIC NO. 120	METRIC NO. 120	METRIC NO. 120	METRIC NO. 120
SPINDLE BORE	100 mm	100 mm	100 mm	100 mm
SPINDLE SPEEDS	5 TO 630 RPM	5 TO 630 RPM	5 TO 630 RPM	5 TO 630 RPM
NO. OF SPINDLE SPEEDS	4 STEPS	4 STEPS	4 STEPS	4 STEPS
NUMBER OF FEEDS AND RANGES	64 NO.S	64 NO.S	64 NO.S	64 NO.S
LONGITUDINAL	0.08 TO 9.6 mm	0.08 TO 9.6 mm	0.08 TO 9.6 mm	0.08 TO 9.6 mm
CROSS SLIDE	0.04 TO 4.9 mm	0.04 TO 4.9 mm	0.04 TO 4.9 mm	0.04 TO 4.9 mm
COMPOUND SLIDE	0.02 TO 2.4 mm	0.02 TO 2.4 mm	0.02 TO 2.4 mm	0.02 TO 2.4 mm
NO. & RANGE OF METRIC THREADS	56 KINDS, 1-120 mm	56 KINDS, 1-120 mm	56 KINDS, 1-120 mm	56 KINDS, 1-120 mm
NO. & RANGE OF INCH THREADS	56 KINDS, 30 - 1/4 T.P.I.	56 KINDS, 30 - 1/4 T.P.I.	56 KINDS, 30 - 1/4 T.P.I.	56 KINDS, 30 - 1/4 T.P.I.
NO. & RANGE OF MODULE THREADS	56 KINDS, 0.5 - 60	56 KINDS, 0.5 - 60	56 KINDS, 0.5 - 60	56 KINDS, 0.5 - 60
NO. & RANGE OF DIAMETRICAL PITCHS	56 KINDS, 60 - 0.5	56 KINDS, 60 - 0.5	56 KINDS, 60 - 0.5	56 KINDS, 60 - 0.5
RAPID TRAVERSE SPEED: LONGITUDINAL	3,640 mm / min	3,640 mm / min	3,640 mm / min	3,640 mm / min
CROSS	1,800 mm / min	1,800 mm / min	1,800 mm / min	1,800 mm / min
TOOL POST	900 mm / min	900 mm / min	900 mm / min	900 mm / min
DIA. OF TAILSTOCK QUILL	120 mm	120 mm	120 mm	120 mm
TRAVEL OF TAILSTOCK QUILL	250 mm	250 mm	250 mm	250 mm
TAPER HOLE OF TAILSTOCK QUILL	MORSE NO. 6	MORSE NO. 6	MORSE NO. 6	MORSE NO. 6
HARDENED & GROUND BEDWAY	Yes	Yes	Yes	Yes
POWER OF MAIN MOTOR WITH INVERTER	15KW	15KW	15KW	15KW
ELECTRICAL POWER	380 VOLTAGE / 3 PHASE / 50 HZ
Net dimension of the machine	3,650×1,500×1,500 mm	5,150×1,500×1,500 mm	6,150×1,500×1,500 mm	7,150×1,500×1,500 mm
Packing dimension of the machine:	4,000×1,900×1,780 mm	5,500×1,900×1,780 mm	6,500×1,900×1,780 mm	7,500×1,900×1,780 mm
N. W. / G. W.	4,300 / 5,450 KGS	7,000/8,500 KGS	8,400/10,100 KGS	9,800/11,700 KGS
