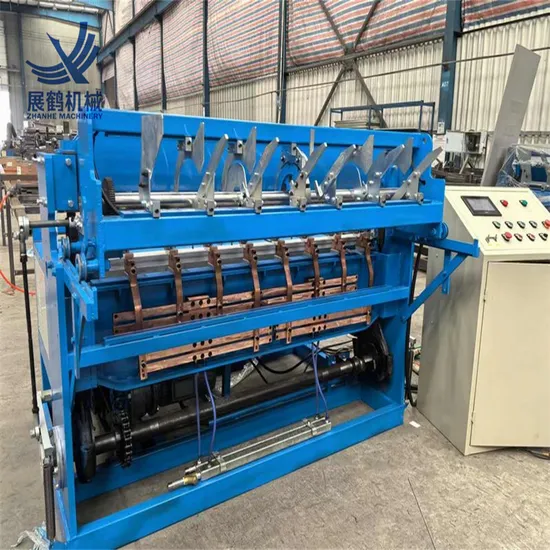

Advanced Steel Wire Mesh Welding Machine for Poultry Cages

Product Description

Advanced Steel Wire Mesh Welding Machine for Poultry Cages Detailed Photos

Product Description

Advanced Steel Wire Mesh Welding Machine for Poultry Cages
Mesh width	395mm	cross wire space	≥ 25 mm
Number of electrodes	16	Cross wire feeding	Precut wire
transformer	Main 125KVA *2+Assist 36KVA*1	tolerance of diagonal line	±2 mm(when 2 m length )
Wire diameter	2-3 mm	Welding material	Low carbon steel wire
Welding speed	6-8 p cs/min	Finished mesh	Panel sheet
Line wire feeding	Coil	Line wire space	≥ 23 mm

Product Parameters

Function features ------------------------Chicken breeding cage mesh welding machine
1.This cage wire mesh welding machine is automatic welded wire mesh machine used for poultry cage wire 2~3.0mm.
2.The cage wire mesh welding machine adapts electrical synchronous technique.
3.The welding time and welding of cage wire mesh welding machine is controlled by integrated electric circuit.
4.The cage wire mesh welding machine welds the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.
5.The cage wire mesh welding machine consists of welded equipment, line and cross wires feeding device, mesh stepping system and electrical control system.
6.The material of cage wire mesh welding machine can be low carbon steel wire or galvanized wire.
7.The line wires of cage wire mesh welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the line wire entrance.Cross wires of cage wire mesh welding machine are pre-straight and cut wires.
8.The mesh aperture size of bird cage wire mesh welding machine can be adjusted. The line wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC.
9.The welding speed of cage wire mesh welding machine can be 60~100times/min, the work speed mainly depends on the wire material,mesh aperture, choice of welding parameter, proficiency of workers,etc
10. The finished product of cage wire mesh welding machine can be in roll or in panel. Installation Instructions

function features of Automatic Chicken Cage Welding Machinery

The breeding net welding machine can produce poultry net pieces, and can be made into chicken cages, etcin addition to producing cages, there are also machines for producing cage doors, including upward and horizontal cage doors, and
machines for producing egg hen cage spacer nets, which make breeding more convenient.
Packaging & Shipping
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is plastic bags packing.
3.Special packing is available as customer's request.
