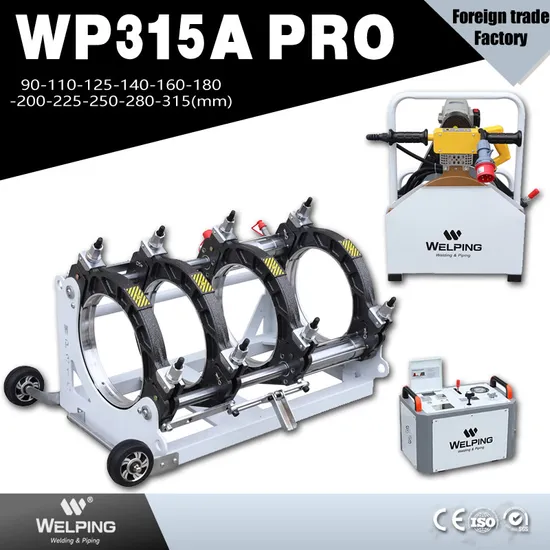

90-315mm HDPE Pipe Butt Fusion Welding Machine Source Factory Supporting OEM/ODM Exporting to 100+ Countries ISO9001/CE/SGS Welping

Product Description

Product parameters

Model		WP315Apro
Suitable materials		PE, PP, PVDF
Welding range		90-110-125-140-160-180-200-225-250-280-315mm
Power supply		220V
Frequency		50 Hz
Total power		5.85 KW
Heating plate		3.1 KW
Planing tool		2.0KW
Hydraulic station		0.75 KW
Max.Pressure		6.3MPa
Hydraulic oil		L-HM46
Cross-sectional area		22.38cm²
Max.Temperature of heating plate		270ºC
Temp.Deviation in Surface		±5ºC
Total Weight		200kg
Net weight		195kg
Basic Frame & Planing tool & heating plate	plywood	890*640*490mm
Hydraulic Unit	plywood	570*430*480mm

Product Features
Frame(Carriage)
1. Complete steel welded design,with complex
reinforced structure, heavy-duty
2. Clamping part,inner fine-machined
3. Standard equipped with carrying handles
for easy transportation
4. Qualified hydraulic cylinder with quick
couplings,for easy installation
Heater: 1. Bakelite handle with high insulating property and thermal insulation 2. Built-in heating element 3. Aviation plug 4. Non-stick coating 5. Die-casting plate
Trimmer: 1. Die-casting frame and rotary plate 2. Universal motor with powerful torsion 3. Gear drive, efficient and maintenance-free 4. HSS cutting blade 5. Separate switch preventing misoperation
Hydraulic Station: 1. Integrated hydraulic and electrical control,
foreasy operation access
2. ·All-in-one control panel:
hydraulic actuation,pressure setting,timing,
electric info display, temperature setting
3. Enclosure design,shielding splash and dirt
4. Qualified Siemens electrical parts
Applications
Company Profile Customization
Customer visitsEXhibitionCertification General Terms
1. PAYMENT
We accept a 30% TT deposit and a 70% balance payment against the photo before delivery or 100% TT in advance.
2. LEAD TIMEWELPING can finish in around 10-15 days for standard and light OEM items.
3. WARRANTY
18 Months from delivery we take full responsebilityfor for parts with quality problems and provide them for free requirements
4. CUSTOMIZED DESIGN
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.
5. ABOUT AGENCY BUSINESS Welcome customers with sincerity and influence to discuss cooperation matters with us.
