4 Color Screen Printing Machine for Tshirt Nonwoven Bag Screen Printer Kraft Paper Bag Impression Maquina Serigrafica
Basic Info.
Model NO.
GW-400TRS
Type
Rotary Screen Printing Machine
Style
Screen-process Printing Press
Structure
Screen Printing
Color & Page
Multi-Colour Printing Press
Application
Advertising Printing
Print Interface
Without
System Supported
Without
Transport Package
Package by Wooden Box and Sea Transportation
Specification
300*300mm
Trademark
HOYSTAR
Origin
China
HS Code
8443192290
Production Capacity
50 Sets Per Month
Product Description

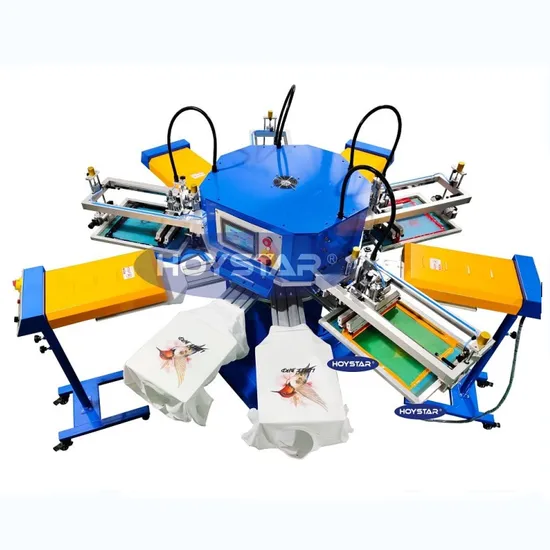

Product Description4 Color Screen Printing Machine For Tshirt Nonwoven Bag Screen Printer Kraft Paper Bag Impression Maquina Serigrafica
What's this rotary screen printing machine use for? It's a carousel screen printing machine with 4 color 10 pallets. Application for printing kinds of fabric/textile items such as Non-woven bags, kraft paper bags, kraft shopping bags, kraft bags, t-shirts, garments, clothes, sleeve, pockets, neck label logo, knitting gloves, working clothes....etc
Product Parameters
| Max.print size | 300*300mm |
| Max.screen frame size | 400*520mm |
| Workstations | 10 pcs |
| Air pressure | 6-8 Bar |
| Voltage | 220V Single phase |
| Electric power | 3KW for 1 set flash dryer * 4 |
| Dimension | 2200*2100*1600mm |
| Weight | 650kg |
Detailed Photos - Screen printing head driving by pneumatic
- PLC program and touch screen control panel
- Machine comes with 4 sets flash dryers, 1 color 1 dryer
- Products sensor, no products, no printing
- Machine printing on kraft paper bag
Features 1. PLC program control and Touch Screen Panel
2. Servo Motor driving worktable rotary 360 degrees
3. Precision divider made Turn table with total 10 stations
4. Pneumatic air cylinder driving printing head up/down, front/back
5. The printing head adopts double guide rails for more precision and steady
6. Machine cover adopts Cast aluminum material, aluminum pallets high quality
7. Automatic sensor, no products-no printing
8. Separately flash dryer Removable
Printed Samples Show
