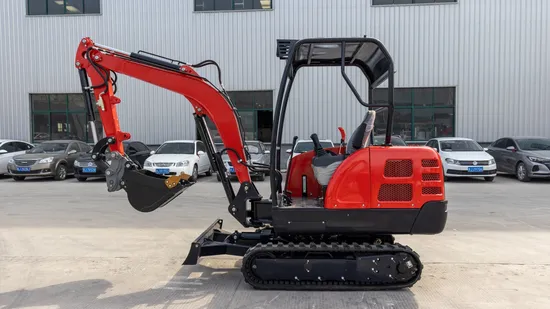

2.5 Ton Chinese Earth-Moving Machinery Excavator Backhoe Digger with Roof

Product Description

Product Description
our 2.5 Ton Chinese Earth-moving Machinery Excavator Backhoe Digger with Roof, the perfect solution for all your excavation needs! This mini excavator is designed to provide exceptional performance and efficiency, making it an ideal choice for various construction projects. With its compact size and powerful capabilities, this excavator is a reliable companion that will help you get the job done quickly and effectively
1-Japan KUBOTA engine , 14.1kw, Tier III emission
2-China brand pump
3-China brand valves
4-EATON brand slewing motor
5-EATON brand driving motor
6-Open cabin(Canopy)
7-Hydraulic pilot servo operation system
8-Rubber track :230mm
9-With broken pipeline system
10-Bucket capacity: 0.1m³
11-With dozer blade
Detailed Photos

Product Parameters

TRACK SYSTEM
Maximum Travel speed	3.5km/h
Width of track shoe(Rubber &steel track)	230mm
Number of track shoe per side(steel track only)	38pcs
Number of upper roller per side	0
Number of bottom roller per side	4
PERFORMANCE PARAMETER
Standard Bucket capacity	0.1m³
Swing speed	12rpm
Maximum Grade ability	30°
Maximum Bucket digging force	15.3KN
Maximum Arm digging force	10.5KN
Hydraulic system pressure	18Mpa
Machine weight	2300kg
Boom length	1850mm
Arm length	1000mm
MACHINE SIZE
Overall dimension (L*W*H)	4170mm*1300mm*2280mm
Axle base(Track length on ground)	1230mm
Track gauge	1070mm
Minimum Ground clearance	230mm
Swing radius at tail	1180mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2290mm
Maximum Digging depth	2450mm
Maximum Vertical digging depth	2160mm
Maximum Digging radius	4370mm
Minimum swing radius	2020mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	310mm
Boom swing angle(Left/Right)	70°/50°

Packaging & Shipping

Company Profile
FAQ
1. How about your price?
Although our products are of excellent quality,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
2. What's your payment?
Our Payment could be
(1) 100% T/T (2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3. What is your payment method?
L/C, D/A, D/P, T/T, Western Union, MoneyGram
4. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
5. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
