EVA Tyre Molding Machine, Rubber Foam Grip Assembly Machine, Foam Tube Grip Assembly Machine, Plate Rubber Vulcanizing Press Machine From Factory Directly

Product Description

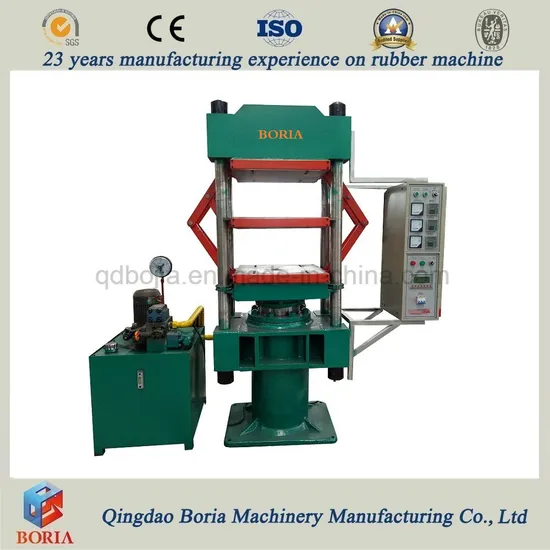

Heating Platen Hydraulic Vulcanizing Press Machine
I. Features of rubber plate vulcanizing press
1. Fame structure
2.This press with PLC control, high production efficiency.
3. The presses heating method with steam heating or electrical heating we can as our clients required to design.
4. Press with automatic warning device, high safety and convenient.
5. The machines used for rubber vulcanization are known as rubber vulcanizing machines.
6. This rubber vulcanizing machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.
This vulcanization machine is extremely useful for testing strength of rubber and find applications in numerous industries.
II. Technical parameter

Parameter \ Type	XLB240× 240×2	XLB350× 350×2	XLB400× 400×2	XLB500× 500×2	XLB600× 600×2/4	XLB700 ×700×2	XLB750 ×850×2/4	XLB900 ×900×2Q
Total Pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20	1.60	2.00
Plate Distance (mm)	125	125	125	125	125	125	200	300
Working Layer NO.	2	2	2	2	2-4	2	2-4	2
Unit Area Pressure of Hot Plate(Mpa)	2.60	2.04	3.13	2.52	2.77	2.45	2.51	2.47
Plunger Stroke (mm)	250	250	250	250	250/400	250	400	400
Heating Mode	Electricity	Electricity	Electricity/ Stream	Electricity/ Stream	Electricity/ Stream	Stream	Electricity/ Stream	Stream
Motor Power (KW)	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
Size:(L×W×H)(mm)	1200×350 ×1300	1400×480 ×1380	1600×500 ×1480	1750×600 ×1540	1880×720 ×1680	2000×850 ×1750	2250×1200 ×2200	1400×900 ×2400 (Mainframe)

III. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
IV. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
