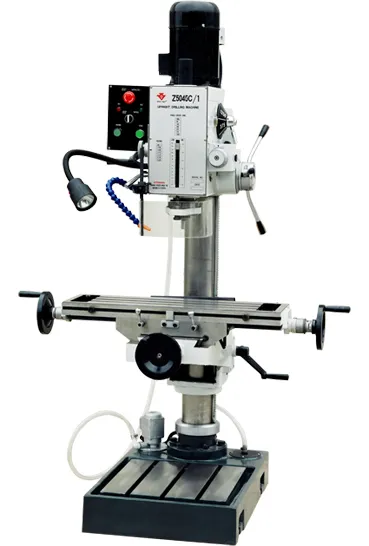

Spindle and Working Table Auto Feeding Uprigt Drilling Machine with Ce Standard Z5032c/1 Z5040c/1 Z5045c/1

Product Description

1.Features
1)Drilling ,milling and tapping
2)Spindle speed step-changed cyclically,spindle auto-feeding and cyclic change of feed speed
3)Head swivels 360° horizontally
4)Headstock and worktable up &down perpendiculary
5)Super high column
6)Precision micro feed
7)Positive spindle lock
8)Distinct auto device for releasing tools operate very easily
9)Gear driven ,lower noise 2.Main Applications and FeaturesThis machine tool is a kind of universal machine tool which is mainly applicable for drilling as well as for hold slash, spot facing, chamfering, reaming, tapping, boring.
Headstock can be moved up and down, and rotated 360º around the vertical column, middle worktable can be move left and right or front and back , Headstock (except (Z5032C/1)) can be leaned ±90º .
Move headstock and work table by worm gear, easily operate. Depth of dill is ensured by scale fixed on sleeve and Setting nut.
In order to easily change tools the automatic tool-stripping device is mounted in the spindle.

3.Specification

SPECIFICATION
ITEM	Z5032C/1	Z5040C/1	Z5045C/1
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Step of spindle auto-feeding	6	6	6
Range of spindle auto-feeding amount	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Min.distance from spindle axis to column	290mm	290mm	290mm
Max.distance from spindle nose to worktable	700mm	700mm	700mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal)	360°	360°	360°
Max.travel of worktable bracket	600mm	600mm	600mm
Worktable size	730×210mm	730×210mm	730×210mm
Forward and afterward travel of worktable	205mm	205mm	205mm
Left anf right travle of worktable	500mm	500mm	500mm
Vertical travel of worktable	570mm	570mm	570mm
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/Frequency	As customer's requirement	As customer's requirement	As customer's requirement
Motor speed	1400 r.p.m	1400 r.p.m	1400 r.p.m
Cooling pump power	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	437kg/500kg	442kg/502kg	442kg/505kg
Packing size	1850×750×1000mm	1850×750×1000mm	1850×750×1000mm
Loading amount	18pcs/20'container	18pcs/20'container	18pcs/20'container

3.Standard accessories : drill chuck1-13mm, Removing Block,Drill chuck arbor
4.Optional accessories :
90mm paraller vise:
125mm paraller vise:
.milling cuttter holder:
.drill chuck:
.Mill chuck
Coolant system
Working lamp
Auto-tapping electrical
Boring bar
150mm rotary table
