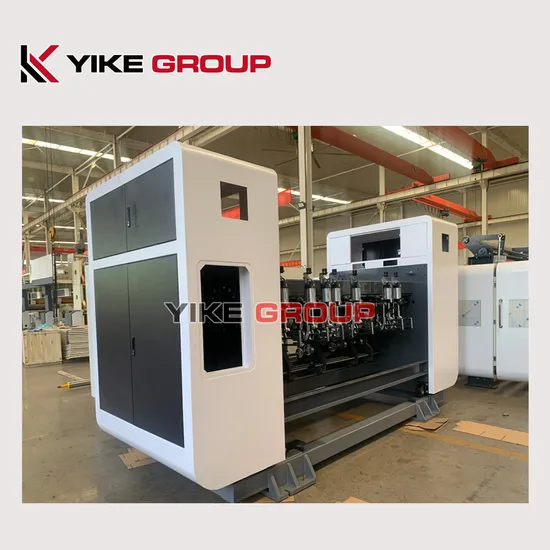

Yk-2200 Slitter Scorer Machine for Corrugated Cardboard Production Line

Product Description

Yk-2200 Slitter Scorer Machine for Corrugated Cardboard Production Line

IMPORTANT FEATURES:
★ The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers.
★ High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the slitting line.
★ It can store multiple orders, and can change orders automatically or manually without stopping.
★ Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility.
★ Change orders quickly, when two machines are used together, it can be realized to change orders without stopping.
★ With thin tungsten steel blade, the blade is sharp and has a service life of more than 8 million meters.
★ Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance.
★ Three types of wire pressing are selected: convex-to-concave (three-layer plate), convex-to-concave (five-layer plate), convex-to-flat, and three types of wire pressing electric conversion.
★ The front and back two rows of pressure wire wheel are arranged to realize zero scorer.
★ Line pressing depth has automatic control, good line shape, easy to shape.
★ The machine moves left and right for correct an error.
ADVANTAGE:
★ Synchronized adjustment of upper and lower pressure lines.
★ Three Voltage Line Electric Conversion.
★ Multi-screw design, economical and durable.

TECHNICAL INDEX:

Model	2200
Efficient width	2250mm
Min. slitting width	135mm
Min. creasing width	0mm
Blade model	Φ260*158*1.3mm
Creasing roller model	(up)φ238mm (down)φ130mm
Changing order time (servo type)	1-4s
Correction range	±100mm
Precision	±0.5mm
QTY of blade/scorer	6/10
Power	20kw
Boundary dimension	4240*1720*2450mm
Depth of creasing	12mm
Design speed	200m/min

Synchronized belt drive Precision Ball Screw with Precision Linear Slider
electric adjustment of indentation clearance
PACKAGING & SHIPPING



FAQ:
Q1. Are you the manufacturer?
A: We are a manufacturing factory for corrugation line, flexo printer slotter machine, auto gluer machine and semi stitching machine, corrugation machines with land field 20,000 square meters.
Q2. Where is your factory located?
A: Our factory is located in the Industrial park, Dongguang County, Hebei Province, China.
Q3. Where is the nearest seaport?
A:Tianjin Seaport,Qingdao Seaport,Ningbo Seaport, Guangzhou Seaport
Q4.What payment terms are acceptable for you?
A: 30%T/T in advance, 70%T/T before shipping.
B.100% L/C at sight.
Q5. What's the production time for the machines?
1. Some machines in stock
2. 20 days delivery time for auto folder gluer machine, semi stitching machine
3. 2 months delivery time for flexo printer slotter machine, hydraulic mill roll stand, single facer machine
Q6. What kind of machines do you offer?
1. Corrugation machines
2. Flexo printer slotter diecutter machine
3. Folder gluer machine
4.Stitching machine
Q7. What are the advantages of your factory?
A:Since 2002, 20 years of rich experience in the corrugated carton box machine industry.
- CE Certification and the ISO9001-2008.
- After-sales team: 365 working days
- Repair and spare parts service
