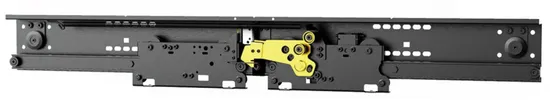

Elevator Part Multi-Purpose Elevator Landing Door Mechanism Central with Kd Series

Product Description

KD-Elevator Landing Door Elevator doors are our main products.
Diversity: We can produce 2 panels central and telescopic door, 4 panels, 6 panels central opening. Glass manual swing door, glass automatic swing door. Automatic glass double door.
Safety: Door testing is more than 1 million circles open and close. Door will be reopen if obstacle is more than 150N.
Please refer to the product details below.

Model	Europe type landing door
Application	Residential,Hotel,High rise building
Opening Way	CentrePainted (Powder coated) ,Hairline Stainless Steel,Mirror Stainless Steel, Etching stainless steel, Golden stainless steel
Width(mm)	600 700 800 900 1000, 1100, 1200
Height(mm)	2000-2400 2000-2400 2000-2400 2000-2400 2000-2400
Control Way	PM
Power	220V,50HZ/60HZ
Guide Rail	Solid Guide

Real Pictures Main Products Company Profile
Production Line
Exhibitions & Customers
Certifications
Logistics
Our Feedback
FAQ 1. Why choose us?
1). We have been in the elevator industry for 15 years and have a professional technical team that can give customers solutions to complex shaft spaces for new elevators.
2). Our technicians have long-term working experience in global elevator companies and can provide effective suggestions for customized car and elevator door material decoration according to customer requirements. Let your elevator not only have quality assurance but also aesthetic elements.
2.Are our elevators safe? -About the door
1). The 1st line protection - the light curtain will automatically reopen the door when it senses an obstacle;
2). The 2nd line protection - the door inverter will give signal to reopen the door when the obstacle reaches 150N to prevent people from being pinched.
3. Are our elevators safe? -How to prevent falling and hitting the top
1). All our safety components are with CE and EAC certification;
2). When the elevator falls faster than 1.15 times the rated speed, the speed governor and tension device will activate the lifting rod of the safety gear, which can stop the further fall by braking the guide rail;
3). When the upward speed exceeds 1.15 times the rated speed, the control cabinet will send a signal to the traction machine, and the traction machine will brake, so that the traction machine will stop going up.
Your Ascend , More than Safety!
