Direct Factory Price 5030A Security X-ray Baggage, Parcel and Luggage Scanning Inspection Scanner - Biggest Manufacturer in China

Product Description

Detailed Photos
We have three different outlook designs for your options.
Company Profile
Cheapest 5030A Single Energy Security X-ray Machine and Baggage & Luggage Scanner - Biggest Manufacturer with AERB Certificate

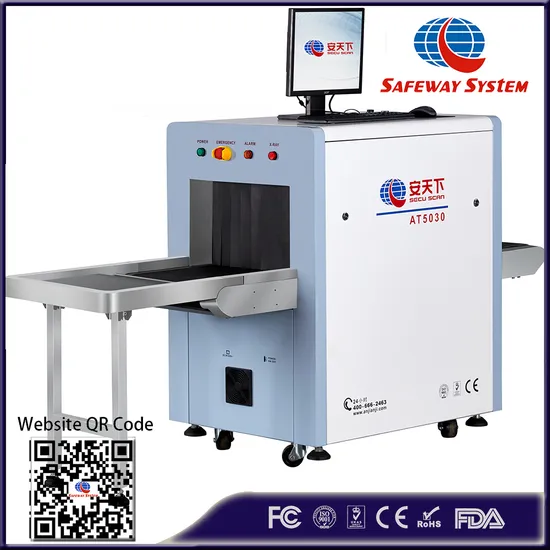

AT5030A X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.
Safeway System product line includes a full range of nearly 100 varieties such as security X-Ray scanner for baggage and luggages, industrial x-ray machines for food detector or needle detector, cargo and vehicle inspection system, explosives and drug detectors, dangerous liquid detectors, under vehicle surveillance system, walk through metal detector, explosive disposal devices products etc. All the products are designed and produced by ourself, with the patents and copyrights reserved. Meanwhile, OEM and ODM services are available. We're open and capable to design and customize new products upon customers' requirements. X-Ray Security Scanner for Baggage, Luggage and Cargo Inspection is the main produce line of our company with great advantages. Production capacity is 30 000 units annually. Quantity shipped annually is up to 10 000 units. From sizes, it can be divided into three categories: X-Ray baggage scanner(5030 to 6550, small size), X-Ray luggage scanner(8065 to 100100, medium size), large X-Ray scanners (from 100120 to 180180 for large airport pallet cargo or logistic industry). We have also one portable and mobile x-ray scanner for small handbags or suitcases, model AT2300 and AT2310. Meanwhile, we can tailor make different designs or structures, for example, we can customize x-ray machine mounted in a car or vehicle, for mobile use.

Product Description
Product highlights
* Linux operation system
* ARM CPU
* Digital signal and processor
* Continous hard work for 10000 hours
* Energy saving design
* High penetration
* Good quality images
Advantanges Comprehensive leadership: First all-digital security inspection machine of China: From signal detection to image display, all signals are transmitted and processed digitally, with strong anti-interference ability and offer high definition scanned image Unique system: With embedded Linux operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process. Safety and environmentally friendly: The equipment meets safety and environmental standards. Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system. Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10, 000 hours without failure.
Equipment Functions Imaging process functions: Color/BW, Local Enhancement, Super Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Previous/Next. System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-16 times continuous magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Physical Specifications
Unit weight (kgs)	250
Unit size (mm)	1660(L)*746(W)*1165(H)
After packed in wooden pallet -
Gross weight (kgs)	320
Packing size	180*88*138cm
General Specifications
Tunnel size(mm)	503(L)*301(W)
Conveyor Speed(m/s)	0.22
Conveyor height(mm)	668.5
Conveyor Max Load(kgs)	100
X ray dose per each inspection	Typical 3.0 μGy, guarantee 3.5 μGy
X ray leakage	Typical 2.0 μGy/h, guarantee 2.5 μGy/h
Penetration	Typical 6mm, guarantee 4mm
Wire Resolution	Typical AWG38, guarantee AWG36
Penetration Resolution	Typical AWG34, guarantee AWG32
Spatial resolution:	Typical dia1.3mm, Vertical: Dia1.3mm; Guarantee dia1.6mm, Vertical: Dia1.6mm;
Power Consumption	0.5kVA
Noise	< 60 dB
Film Safety	Guarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage	80 KV
Anode power	0.3mA
Generate angle	80 degree upward
Generate direct	From bottom to top
Cooling / Duty Cycle	Oil Cooling /100%
Brand	Made by ourself
Software System
Self-test after power on	Self test after power-on, and show the problem ( 1. Emergency stop, 2. Housing panel is open 3. Calibration fail 4. Detection system error 5. Hard drive is missing)
Image Display	High resolution of 1024 * 1280 pixel;
Image Enhancement	Color/BW, negative, high/low Penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall	30 images recallable, retrieval
Image Archive	Up to 500, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Real-time Curve	Real-time curve to see if the detection system and other components work well
Others	Fault diagnosis, system time setting, detection blind dots delete, X-ray source setting(analoge or digital), alarm setting, images setting, software register, user management, TIP report, data setting(machine working time, X-ray source working time, baggage counter, etc. )
Operating Environment
Operation temperature/Humidity	5ºC-40ºC / 0%-90%(non-condensing)
Storage Temperature/Humidity	-40ºCTO 70ºC / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC)
Computer and other
Monitor	High Resolution Color, LCD Accord, 17inch
Hard Disk	SEAGATE 500G 3.5"
CPU	Cortex A9
Storage	1GB
Main board	IMX6_mainboard-V030, made by Safeway
