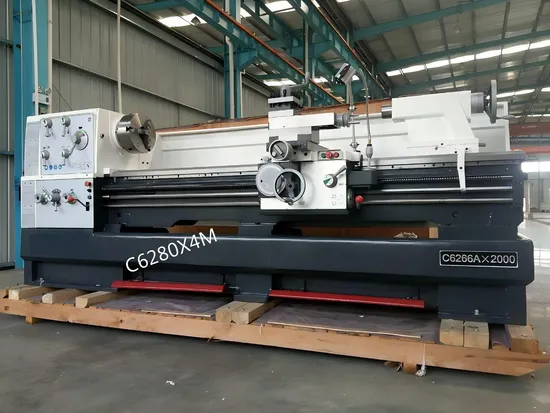

C6280X4m Center Distance Horizontal Engine Lathe
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6280X4M
Type
Horizontal Lathe
Processing Accessory
Manual
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Condition
New
Color1
According to Customer
Other Length
1.5m, 2m,3m
Logo
Can Be OEM
Standard Color
Upper White,Down Black
Optional Color
Upper White, Down Blue
Transport Package
Wood Box
Specification
4m
Origin
Dezhou
HS Code
8458190000
Production Capacity
5000
Product Description
C6280
UNIVERSAL HORIZONTAL LATHE
Product Description
SIMPLE INTRODUCTION
C62 series is horizontal lathe used for machining various kinds of steel parts. It is specially suitable for mass production of machining inside and outside cylinder surface, end surface, metric and inch thread etc.
Product Parameters
2.PARAMETER
| MACHINE TOOL TYPE | C6266(A) | CQ6280 | |
| CAPACITY | |||
| Swing Over Slide | Φ660mm | Φ800mm | |
| Swing Over Cross Bed | Φ440mm | Φ570mm | |
| Swing in Gap | Φ900mm | Φ1035mm | |
| Length of Gap | 250mm | ||
| Center Height | 330mm | 400mm | |
| Distance Between Centers | 1500mm/2000mm/3000mm/4000 | ||
| Width of Bed | 400mm | 400mm | |
| Max. Section of Tool | 25mm × 25mm | ||
| Max. Travel of Cross Slide | 368mm | 420mm | |
| Max. Travel of Compound Rest | 230mm | 230MM | |
| HEADSTOCK | |||
| Spindle Bore | Φ105mm | ||
| Spindle Nose | D1-8 | ||
| Taper of Spindle Bore | Φ113mm(1:20)/MT5 | ||
| Spindle Speed Step | 16 | ||
| Range of Spindle Speed | 25~1600rpm | 25~1600rpm | |
| FEEDS AND THREADS | |||
| Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | ||
| Inch Threads Range | 7/16~80T.P.I. (54 kinds) | ||
| Metric Threads Range | 0.45~120mm (54 kinds) | ||
| Diametrical Pitches Range | 7/8~160DP (42 kinds) | ||
| Module Pitches Range | 0.25~60MP (46 kinds) | ||
| Longitudinal Feeds Range in Metric Lead Screw | 0.044~1.48mm/rev (25 kinds) | ||
| Longitudinal Feeds Range in Inch Lead Screw | 0.00165"~0.05497"/rev (25 kinds) | ||
| Cross Feeds Range in Metric Lead Screw | 0.022~0.74mm/rev (25 kinds) | ||
| Cross Feeds Range in Inch Lead Screw | 0.00083"~0.02774"/rev (25 kinds) | ||
| TAILSTOCK | |||
| Travel of Tailstock Sleeve | 235mm | ||
| Dia. of Tailstock Sleeve | Φ90mm | ||
| Morse Taper of Tailstock Sleeve | MT5 | ||
| MOTOR | |||
| Power of Main Motor | 7.5kW(10HP) | 11kW (15HP) | |
| Power of Coolant Pump | 0.09kW (1/8HP) | ||
| DIMENSION AND WEIGHT | |||
| Machine size | 321×123cm×160cm 371X123X160cm 471x123x160cm | 321x123x167cm 371x123x167cm 471x123x167cm | |
| Packing Size | 324x114x184cm 374x114x184cm 474x114x184cm | 324x114x191cm 374x114x191cm 474x114x191cm | |
| Net Weight | 3065kg 3345kg 3710kg | 3175kg 3455kg 3820kg | |
| Gross Weight | 3535kg 3835kg 4310kg | 3695kg 4005kg 4405kg | |
3.STANDARD ACCESSORIES
| No | Item (Standard Accessories) | Quantity |
| 1 | 3-jaws self centering chuck | 1 Pcs |
| 2 | 4-jaws independent | 1 Pcs |
| 3 | Foot brake | 1 Set |
| 4 | Steady rest | 1 Pcs |
| 5 | Follow rest | 1 Pcs |
| 6 | Face Plate | 1 Pcs |
| 7 | Auto lubrication system | 1 Pcs |
| 8 | Full length splash guard | 1 Pcs |
| 9 | Operational Manual;dead center | 1 Pcs |
4. Dimension
| Dimension and weight | |
| Overall dimension | |
| (L×W×H) cm | 194x85x132cm |
| Packing size(L×W×H) cm | 206x90x164cm |
| Net weight | 1160kg |
| Gross weight | 1350kg |
