X800g Vacuum Hopper Feeder Conveying Automatic Plastic Auto Loader Industrial Auto Loader

Product Description

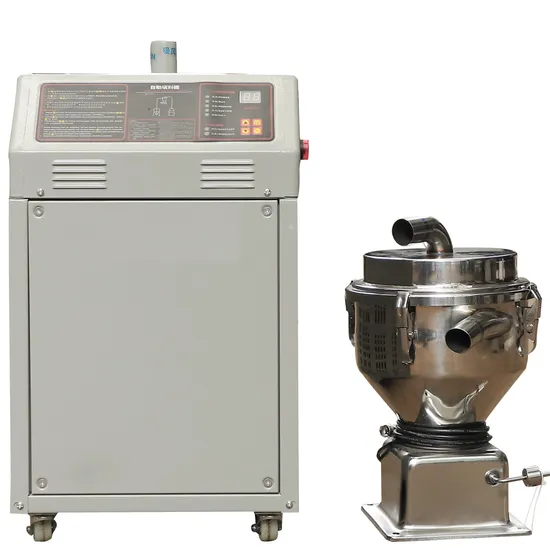

X800G Vacuum hopper feeder Conveying automatic plastic auto loader Industrial auto loader
Stainless steel hopper, to ensure that the raw material is not contaminated.
Microcomputer control, simple operation, precise control, and there are number of alarm indicator.
Motor protection device, can increase its service life.
Lack of alarm, can take the initiative to inform customers of the situation.
Independent filter device to facilitate the removal of dust; filter view window, to facilitate customers to view the use of filter, and regular cleaning. Vacuum hopper can be directly installed in the molding machine hopper;
electric eye hopper can be directly installed in the molding machine feeding port. Optional cyclone dust collector, reducing filter cleaning times, suitable for crushing and conveying.Optional Europeanization of material two proportional valve (including purchase control box), for new material and powder mixture use or crushed material immediate recovery.

Model				X800G
Motor				1.1kw/1.5hp 3φ
Conveying capacity(kg/hr)				430
Loading distance(m)				4
Static wind pressure(mm/H2O)				1800
Reservoir volume(L)				7.5L
Conveying tube inner dimeter				φ38
Specification of the attached hoses				φ38mm×4m 2pcs
Dimensions (mm)		Main Frame		72*55*108
		Hopper		33*38*45
Voltage				380v/50hz 3phase
Net weight(KG)				65

FAQ
1. Are you a manufacturer?
A: Yes

2. How about your warranty?
A: 1.All of our products for one year warranty.
2.24-hour telephone service.
3.A large stock of components and parts, easily worn parts.
4.Toolkit will attach with Machine
3. Can robot be put on cilent's logo?
A: Yes
4. How can you guarantee we receive a good performance product?
A: Every machine will be tested before shipping.Jietou applied series inspection process during production
When the machine was finished. QC will provide inspection video and pictures for double check the quality control,
and we will send the troubleshoot and solutions if needed.also third part or customers come to the factory have field inspection is welcome.
5. Who do I talk to when I want to start an application?
A: Jietou has experiences of sales engineers to provide the assistance and support you require.
6. How soon can you deliver the equipment?
A:1-7 days(stock available), Customized equipment or no inventory machine normally need 15-25 days.

7. What is your payment term?
A:The payment method is TT,50% prepayment,50% balance before cargo delivery.
8. How to buy your machine?
A: advise specification → confirm model&price→ sign a PI →pay the deposit,
→machine manufacture→pay the balance→ ship out and provide the tracking number.
