Stainless Steel Stock and Dish End Surface CNC Grinding Polishing Machine Manufacturer

Product Description

Product Description

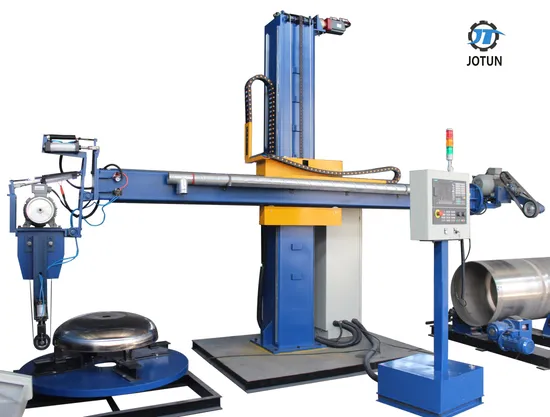

This machine has a CNC control system,you just need to set up the program and it will do the polishing work itself.
This model for polishing tank and dish head inside and outside to meet different Ra.(hairline/mirror finish...). our standard machine can polishing tank length up to 4000 mm.diameter from 400-4000mm. about dish head polishing,standard machine can polish dish head heigh is 800mm.(all machine can custom-made)

Product Features: 1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.4. GHS dust collector can be installed.

Specification of Machine
Main Motor Brand	Siemens
VFD/Driven Brand	Siemens
Component Brand	Siemens
Machine Dimension	5500*1600*2900mm
Machine Weight	30000kgs
Contaol System	CNC
Polishing Material	Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel,etc.
Application	tank shell, cylinder, pressure vessel, reactor,dish head,dished end,etc.
Patent No.	201120122490.4
Noted	Our products all Non-Standard Customization(the above data for reference only)

Specifications of Working Piece
Work Piece Size	Tank/Vessel/Cylinder	Diameter	200-5000 mm
		Max Length	6000 mm(customized)
		Max Weight	1/2/5/10/15Tons
	Dish head/Dished end	Diameter	400-5000 mm
		Max Height	800 mm
		Max Weight	1/2/5/10/15Tons
Material	stainless steel,Aluminium,carbon steel,copper,etc.
Surface Roughness	Ra ≤ 0.2 μm (Get matte ,bright and mirror surface)
Product Efficiency	10-12 square meters per hour

Detailed Photos
Company Profile
China Jotun Polishing Machine supply professional automatic grinding machine,polishing machine,deburring machine.Main products are tank and dished end polishing machine, tube polishing machine,sheet deburring machine,weldseam polishing machine,etc.Main Application Filed,1,Pressure vessel industry. 2,Beverage & Brewery.3,Chemical & Cosmetic. 4, Food & Dairy.5,Pharmaceutical/CIP Plant 6,petrochemical industry7, Truck tankers etc 8,Organic fuel production etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Customer Cases
Packaging & Shipping
Related Products
FAQ
Q:Why choose our machine?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.Please tell me your requirements first, then we can designed the suitable machine to you.
Q:How about delivery time?
A: 20-35days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email.
Q: Do you have installation and training service in our local?
A: Currently, we have service partners in Portugal, Tukey and India. Portugal and Turkey partners provide service for the European area. In other areas, if needed, we will arrange an engineer from China.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support and service, and consumables at the lowest price.
