PDA Device Contact IC NFC Msr Card Payment ATM Security Pinpad Z90pd

Product Description

Contact IC NFC MSR Card Payment ATM Security Pinpad Z90PD Introduction

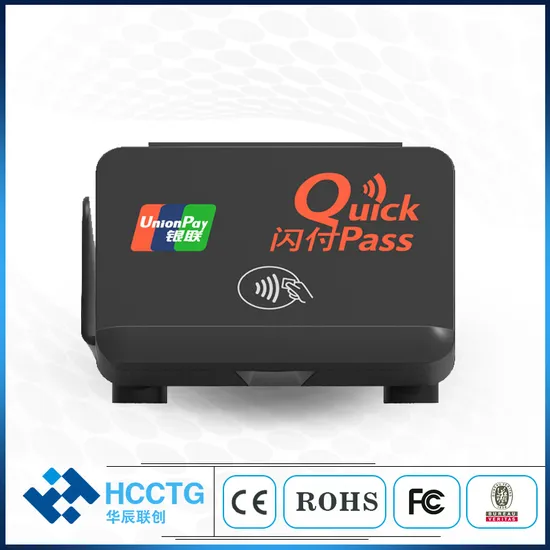

Z90PD is an All-In-One desktop PIN-pad reader that combines contact smart card, magnetic stripe and contactless technologies. It has LED indicators, 128 x 64 high-resolution graphical LCD, buzzer. Z90PD has passed the PBOC3.0 L1 and qPBOC3.0 L1. It can be applied in banking, transportation, healthcare, government and retail sector.
Features
128×64 dot-matrix LCD, support backlight 4 LED status indicators 17-key keypad 1 or 2 slots for full-size smart card reader/writer compliance with ISO/IEC 7816 Contactless card reader/writer compliance with ISO/IEC 14443 part 1-4 Configurable 1 to 4 SAM slots Magnetic Stripe Support RS232 interface USB full speed H-ID Compliance Support buzzer Support firmware upgrade Optional external privacy shield Certifications PBOC 3.0 L1 qPBOC 3.0 L1 Detailed Photos
Product Parameters

Physical Specifications
Case Color	Black or Grey
Weight	310g
Memory
Memory	2 KB Flash
Power
Power Source	Battery
Supply Voltage	5 V DC
Supply Current	Max. 500 mA
USB Interface
Type	Type A, USB full speed
Power Source	From USB
Speed	12 Mbps
Firmware	Upgradable through USB interface
Interface Class	H-ID compliance
Cable Length	1.5 m fixed cable
Contactless Smart Card Interface
Standard	ISO-14443 A & B part 1-4
Protocol	Mifare® Classic Protocols, T=CL
Smart Card Read /Write Speed	106 kbps
Operating Distance	Up to 40 mm
Operating Frequency	13.56 MHz
Contact Smart Card Interface
Number of Slots	1 or 2 ID-1 Slots
Standard	ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V)
Protocol	T=0; T=1
Supply Current	Max. 50 mA
Short Circuit Protection	(+5) V /GND on all pins
Card Connector Type	ICC Slot 0: Landing
Smart Card Read /Write Speed	9,600-115,200 bps
Card Insertion Cycles	Min. 200,000
SAM Card Interface
Number of Slots	4 ID-000 slots
Card Connector Type	Contact
Standard	ISO/IEC 7816 Class B (3V)
Protocol	T=0; T=1
Smart Card Read /Write Speed	9,600-115,200 bps
Magnetic Stripe Card Interface
Standard	ISO 7811
	Track 1/2/3, Bi-directional
Reading	Supported
Built-in Peripherals
Keypad	17 keys
LCD Display	128×64 dot-matrix LCD display with backlight\
Buzzer	Monotone
LED Status Indicators	4 LEDs for indicating status (from left most: blue, yellow, green, red)
PIN-pad Encryption
Algorithm	DES/3DES
Standard	X9.8, X9.9
Operating Conditions
Temperature	0°C - 50°C
Humidity	5% to 93%, non-condensing
Certifications/Compliance	ISO/IEC 7816, ISO/IEC 14443, qPBOC Level 1, qPBOC Level 2
Supported Operating Systems	Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®
