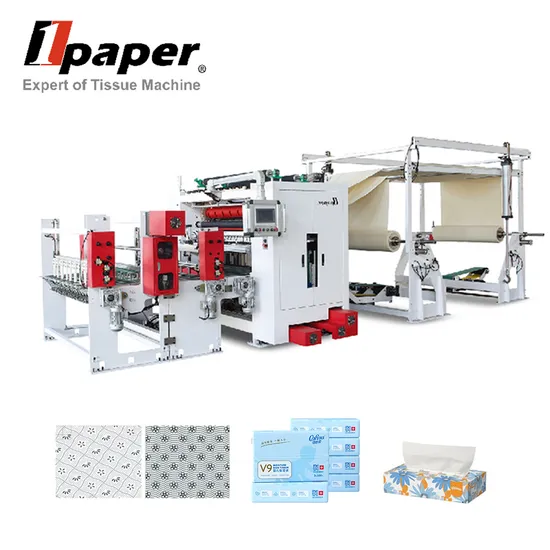

Advanced Automatic High Content Cream Baby Tissue Folding Machine for New Business

Product Description

Scope of Application
Suitable for automatic folding and automatic dispensing of box draw facial tissue, soft draw facial tissue and cotton soft towel.
Description of main technical parameters
1.Unwinding, crimping, embossing/gluing lamination (optional), folding, and picking (optional) are completed in one piece, making the operation simple and easy to master;
2.Adopting servo tracking unwind, effectively controlling the tension, so that the folding effect is better and the size is more accurate;
3.Adopting pressure stabilizing technology, the fan is equipped with frequency converter (or energy-saving fan), which should automatically adjust the air volume when folding speed is needed, and can save energy by 30%;
4.Fixed stopping position technology, no need to open the fan does not drop the paper when stopping (or micro-air volume suction), greatly reducing energy consumption and paper waste due to the black spot for a long time downtime;
5.Adopting new type of rear paper holder, pneumatic paper loading or motor winch lifting paper loading, which greatly reduces the labor intensity;
6.Adoption of new adsorption design effectively improves the adsorption performance and can increase the folding speed of poorly adsorbed materials;
7.Adopting half-folding and locking paper from the outside of the machine to the inside(new technology), the product is beautiful, and it is difficult for paper towels to float during high-speed transportation;
8.Adopting multi-axis servo control in-machine sub-taking design, high synchronization and coordination, more convenient for maintenance operation.
Product Description
High-Speed Automatic Facial Tissue Folding Machine
Application: Soft tissue, box tissue, cream tissue
Features: Neat from the first sheet to the last sheet; one-key change from 24 sheets to 200
sheets (300 sheets); compatible for 10.5g two-ply tissue (high difficulty) till five-ply tissue; four-side positioning embossing, one-key change of specifications (optional)
Value: The beautiful appearance of the finished product enhances its competitiveness.
The simple operation for production changing enhances production efficiency.
Multi-spot inspection ensures safe running of the equipment.
Main parameters: Production speed: maximum 150 meters/minute
Product Parameters

Tem/model		OPFD Serirs
Folding type		V type
jumbo roll material		pulp paper
Folding specification	Length	depends on jumboroll width (1450/1800/2000/2800mm,optional)
	Width	175/180/190/210 optional
	Height	30-200sheets
Machine dimensions		L8629×W3000×H2190mm
Folding speed		160m/min
Driving power		1.5KW/SET
Motor power		5.5KW
Vacuum power		30KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.7 MPa
Air consumption		200-260L/min
Auto transfer		speed:8-15logs/min
		counting sheet 30-200sheet
Machine weight		≈6000Kg

Detailed Photos
Printing Samples
Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
