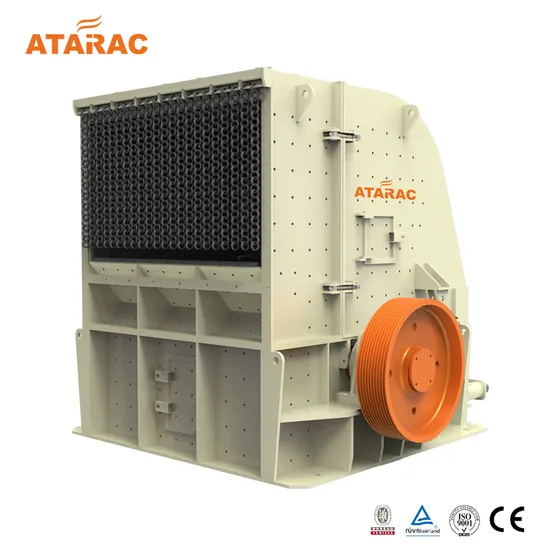

Atairac Limestone Rock Hydraulic Impact Stone Crusher with Ce ISO

Product Description

Product Introduction
PFS Impact Crusher is a newly developed series impact crusher with high efficiency. It has smart structure and can be applied to primary crushing, secondary and fine crushing of a variety of materials with compression strength less than 250Mpa. It can be widely used for sand and aggregate processing in water conservancy and hydro-power projects and other infrastructure constructions, such as highway, high-speed rail, building materials, mining and urban construction waste treatment.
Structure

Product features Specially designed three crushing chambers, which improves the production capacity, makes the feed size bigger and the product shape better. The optimally designed rotor provides powerful rotational inertia and strong impact force of hammer head, which improves the productivity and increases the crushing ratio. Specially designed anti-wear alloy C shape hammer keeps the shape of impact face in product life cycle. It ensures that the product shape and particle size distribution is very stable. Standard modular designed liner and tooth impact plate have common-ability and interchangeability, which improve the utilization ratio and prolong the machine's service life. Special hammer fitting structure improves hammers, stability and convenient dismounting, it also greatly improve the work efficiency. The discharging opening size of the machine can be adjusted according to the requirement of product size and particle size distribution. The standard hydraulic lifting device will be provided with the machine. It is optional to supply special lifting tools for replacing hammers, which is flexible and can be easily maintained.
Technical Parameters

Model	Max. Feed Size (mm)		Discharge Size (mm)	Capacity (t/h)	Power (kw)
	<150MPa	<250MPa
PFS1108	300	150	30	50-100	75
PFS1110	400	200	35	80-150	110
PFS1310	400	200	40	140-200	160
PFS1313	400	250	40	180-260	200
PFS1315	400	300	40	200-300	250
PFS1320	400	300	40	300-400	2x160
PFS1520	500	400	40	350-550	2x250
PFS1823	500	500	40	550-850	2x400
PFS2223	600	500	40	850-1200	2x560

Testing site
Application
Sandstone series impact crusher vortex strong crushers can be applied to such industries as mining, civic construction waste disposal, civic projects, bridge and tunnel construction, highway, railway, hydraulic engineering and hydropower, and metallurgical operation, thus meeting the diverse needs of different customers.
Client site
Certification
Packing & Shiping
Service

Pre-Sales Service1. Select proper equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
4. Make sure goods prepared within delivery time;
5. Pre-check and accept products ahead of delivery;
6. Prepare documents required to help customer pass customs clearance.
7. Help clients to make Project evaluation and feasibility analysis and draft solving plans.
After-Sales Service1. Assist clients to prepare for the first construction scheme;
2. Install, debug and examine the equipment;
3. Train technical personnel the first-line operators;
4. Provide technical exchanging
5. Offer spare parts at a best price for long term.
FAQ

1. How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.
2. How long is the gurantee period of your NHX powder separator?
We guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance.
3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buy
