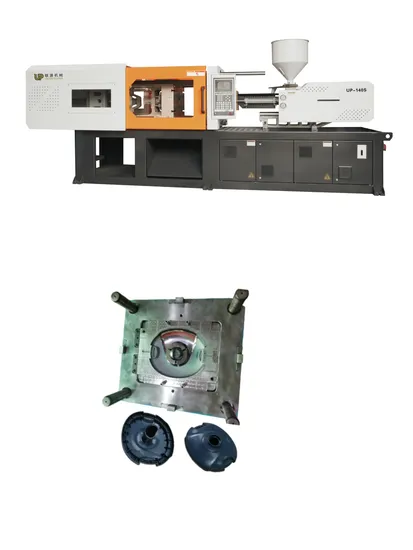

48 Cavities Nylon Cable Tie Molding Equipment
| US$15,000.00-18,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-140T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
This China servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. offers advanced features for precise and efficient molding processes. Key parameters include:
Modulus of Capacitance: Ensuring optimal positioning, size, and maximum allowable modulus of capacitance, along with minimum closure thickness of the injection molding machine guide pillar (Green column).
Nozzle Parameters: Including spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for enhanced control and accuracy.
Code Mold Parameters: Featuring mold hole and slot size specifications for consistent and reliable molding results.
Ejection Mechanism: Providing details on the ejection point position, ejector rod diameter, and optional ejection force and stroke for seamless mold release.
Mold Opening Stroke: Offering precise mold opening stroke and maximum opening distance for versatile molding applications.
Experience superior performance and quality with this servo injection molding machine designed to meet the demands of modern manufacturing processes.
| Technical Parameters | Model UP-140T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 38 | 42 | 45 |
| Shot Volume (cm3) | 215 | 260 | 302 |
| Injection weight (g) | 194 | 237 | 272 |
| injection pressure (Mpa) | 186 | 152 | 132 |
| Screw speed (rmp) | 215 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1400 | ||
| Open stroke (mm) | 380 | ||
| Max Mold height (mm) | 450 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 420*420 | ||
| Ejector force (KN) | 46 | ||
| Ejector stroke (mm) | 120 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 13(14) | ||
| Heating power (KW) | 8.2 | ||
| Machine dimension (M) | 4.2*1.2*1.9 | ||
| Machine weight (T) | 3.4 | ||
| Oiltank cubage (L) | 190 | ||
