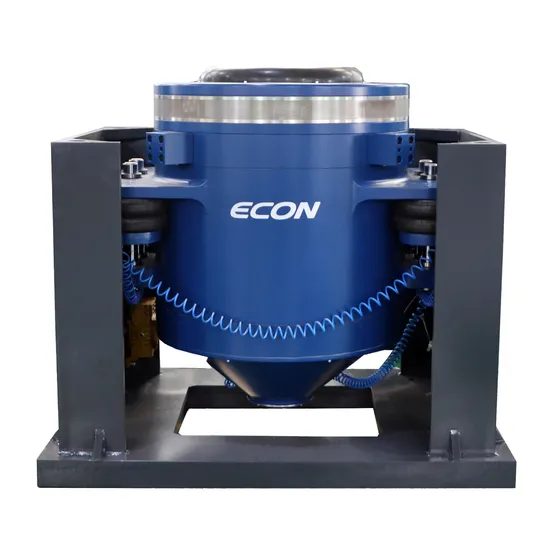

32kN Electro-Dynamic Vibration Testing Long Stroke Shaker (Air-Cooled Shaker)
| US$20,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
EDM-3200LS
Mass Scope of Workpiece
/
Type
Vibration Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
1
Load Way
Mechanical Load
Loading Method
/
Display
/
Control
Computer Control
Customization
Available
Transport Package
Wooden
Specification
/
Trademark
ECON
Origin
China
HS Code
9031809090
Product Description
Product Description EDM-LS series electro-dynamic vibration test system is suitable for vibration test requirements with long stroke. The frequency range of this series is 1-2500Hz, Max. acceleration up to 800m/s² (no-load), and Max. speed up to 1.8m/s.The system is mainly used in aerospace, transportation and other fields. It can meet the test requirements of random, sine and impact, and is suitable for the transportation environment test specifications stipulated by ISTA.
Features The unique guidance system and support system for EDM-LS series;
Max.Displacement: 100mm;
Various models from 30KN to 50KN;
Easy operation;
Armature Diameter range from 350mm to 445mm;
Max.Load: 800kg;
Product Parameters
| System Model | EDM-3200LS | EDM-5000LS |
| Sine force Peak (kN) | 30 | 50 |
| Frequency range (Hz) | 5~2500 | 5~2500 |
| Max. Acceleration (m/s²) | 750 | 750 |
| Max. Velocity (m/s) | 2 | 2 |
| Max. Displacement pp(mm) | 100 | 100 |
| Max. Load (kg) | 500 | 800 |
| Effective armature mass (kg) | 40 | 63 |
