Laboratory 10L PVC Material High Speed Mixer

Product Description

Small Mini PVC Mixer for Laboratory
Application:
SHR series pvc mixer for laboratory is mainly used in mixing PVC and all kinds of plastic materials.it can be used on plastic,rubber,food,daily chemical industry etc.
Features:
SHR Series laboratory mixing equipment adopts advanced design and can be operated easily.It can work very stable with high efficiency,low energy consumption and low noise.
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test
SHR HIGH-SPEED Laboratory mixing equipment

Type	Volume (L)	Effective Volume (L)	Mixing time (min/batch)	Rotate speed (r/min)	Motor (Kw)	Capacity (kg/hour)
SHR-5A	5	3	6-8	1500	1.1	10
SHR-10A	10	7	6-8	1500	3	20
SHR-25A	25	20	6-8	1500	5.5	50
SHR-50A	50	35	6-10	750/1500	7/11	100
SHR-100A	100	75	6-10	650/1300	14/22	200
SHR-200A	200	150	6-10	475/950	30/42	400
SHR-300A	300	225	6-10	430/860	40/55	500
SHR-500A	500	375	8-12	330/660	55/75	800
SHR-800A	800	520	8-12	395/790	83/110	1400
SHR-1000A	1000	650	8-14	330/660	90/132	1600
SHR-1300A	1300	850	8-14	330/660	132/200	2100

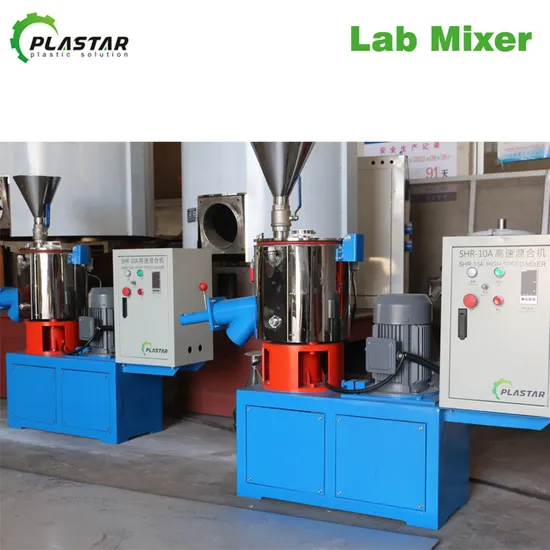

Laboratory Laboratory mixing equipment pictures for reference:
