Ftdi USB to RS485 Converter Wire End Cables

Product Description

FT232R USB RS485 Converter,Panel Mount FTDI USB to RS485 Cable Converter Duplex converting serial rs232 to 485 usb to rs485 converter adapter/FTDI usb to rs485 usb-485 converter adapter cable for win 8
Specifications 1.FTDI Chipset USB to RS485 Cable USB port-powered. Cable length: 1.8m 2 Compact high performance solution.

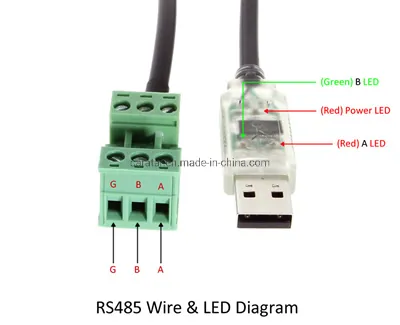

3.Indication LED lights for TX, RX and Power.
4.Interface: Terminal header + stripped wires.
5.Automatic Send Control.
6.Up to 32 nodes in network configuration. Professional Manufacturer

Product Name:USB to RS485 Converter Cable Type:Serial Cable Port 1:USB A Male Port can be changed:RS485 Chip: FTDI FT232R
Product Description USB to RS485 Converter, USB RS-485 A male to open cable with FTDI chip
USB to RS485 Compact FTDI Converter with Terminal Screw OR named USB to rs485 uart serial converter adapter
The processor chip in this converter cable is the high performance FTDI chip which is compatible with all versions of Windws (32- and 64-bit), Mc and Linux Compact USB to RS-485 converter cable with the chipset built into the USB connector. This desgn offers a convenient way of connecting your RS485 devices directly to the RS485 wires of this 485 converter cable or via the a two-piece screw terminal connector for easy disconnection.
Besides the RS485 D+, D- and GND signals this converter cable also provides an addtional +5VDC at the 485 end which can be used for powering your device if needed.
The cable itself is powered from the USB port so no additional external power supply is needed for this RS 485 converter to work.
After connecting and installing the drivers for this cable a virtual COM port is automatically created and will show up in your operating system's Device Manager just as if it was a real local COM port.
This USB to 485 converter is surge and static protected to protect against the most common damages from static electricity and other voltage spikes, which makes it suitable for most applications, including industrial, commercial and any general office environment.
Automatic send data control is enabled by default so no external flow or handshake control is needed.

SPECIFICATIONS
Part number	UC-USB-RS485-WE-1800-BT
Operating system	Windws 8.1 / 8 (32/64-bit), Windws 7 (32/64-bit), Vista (32/64-bit), XP, Server 2003/8R2 (32/64-bit), 2000, ME, 98Se (all WHQL compliant) Linux Mc OS 8, OS 9, OS X Windws CE NET (Version 4.2 and greater) Android
Processor	FTDI FT232R
Unique chipID no.	Yes, each converter has it own unique ID numberwhich can be accessed by the user with the D2XX driver programmers guide.
RS485 Interface	Included screw terminal header / single wires
Echo signal	None
Fail-safe bias resistors	Yes
USB interface	Standard Type A Male
Ports	1-port available for RS485
Signals	RS485, 2-wire half duplex: D+, D-, GND
Baud rate	300-921.600bps (up to 3kbps by using alising)
Parity	None, Odd, Even, Mark, Space
Data Bits	7, 8
Stop Bits	1, 2
TX / RX buffer size	256 Byte Transmit Buffer / 128 Byte Receive Buffer
Adjustable USB transfer sizes for TX and RX	From 64 bytes to 4096 bytes
Adjustable latency timer	1 to 255 msec
Adjustable read and write timeouts	0 to 10000 msec
Flow Control	None, Xon/Xoff, Hardware
COM port accessible by	Included virtual COM port drivers or FTD2XX.DLL
Special features	Compatible with Modbus RTU/ASCII, BACnet Supports non-standard baud rates Automatic Send Control
Electrostatic (ESD) protectin	600W surge protectin, 15KV static electricity protectin
Current draw	Static: less than 80mA. Dynamic average: less than 150mA
Interface compliance	USB1.1,2.0,3.0, EIA/TIA RS-232
Regulatory compliance	FCC, CE and RoHS
Working temp	-20°C to 60°C
Cable length	1.8m
Size	50 x 8 x 18mm (USB part only)
Warranty	1 year limited warranty

Customized for SETUP CABLE,programming cable for the TAG ACTIVATOR used to activates DOT family RFID Active tags./USB C Type connector for USB Type-C enabled laptops or tablets Packaging & Shipping Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity

Product Application
USB to serial RS485 level converter. Upgrading legacy peripherals to USB. Interface Microcontroller UART or I/O to USB. Interface FPGA or PLD to USB. USB Instrumentation PC interface. USB industrial control. USB password protected file transfers
Introducing the Ftdi USB to RS485 Converter Wire End Cables, the ultimate solution for seamless data transmission in cross-border e-commerce platforms. Designed with a perfect blend of industry expertise and marketing know-how, this product description aims to captivate your attention and provide you with specific details about our exceptional product.
The Ftdi USB to RS485 Converter Wire End Cables are meticulously crafted to meet the demands of modern businesses operating in cross-border e-commerce. With its cutting-edge technology and unrivaled performance, this converter ensures a seamless and reliable data transmission experience.
Featuring the RS485 RJ45 interface, this converter allows for effortless connectivity and compatibility with a wide range of devices. Whether you need to connect your computer, printer, or any other RS485-enabled device, this converter is the perfect choice. The Ftdi USB to RS485 Converter Wire End Cables also come equipped with a USB to RJ45 8p8c RS485 Serial Cable, providing you with the flexibility and convenience you need for your cross-border e-commerce operations.
With its sleek and compact design, this converter is not only functional but also aesthetically pleasing. Its durable construction ensures long-lasting performance, making it a reliable companion for your business endeavors. The Ftdi USB to RS485 Converter Wire End Cables are built to withstand the rigors of cross-border e-commerce, ensuring uninterrupted data transmission even in the most demanding environments.
In conclusion, the Ftdi USB to RS485 Converter Wire End Cables are the epitome of excellence in cross-border e-commerce. With its seamless connectivity, compatibility, and durability, this converter is a must-have for businesses looking to thrive in the global marketplace. Invest in the Ftdi USB to RS485 Converter Wire End Cables today and experience the difference it can make in your cross-border e-commerce operations.
