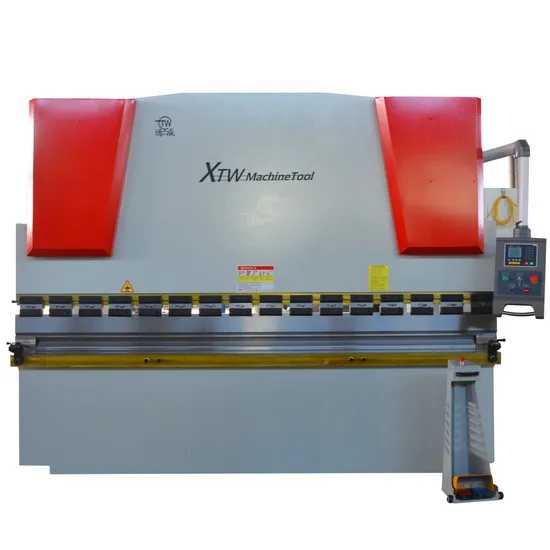

China Factory Hydraulic Press Brake Machine Price Wc67y-200t3200 CNC Press Brake

Product Description

China factory Hydraulic press brake machine price WC67Y-200T3200 cnc press brake Detailed Photos

Product Description Main Features The whole EU streamlined design, heat treatment rack, high rigidity worktable, optional mechanical compensation device, to achieve precision bending. Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease use. Integrated hydraulic system (Bosch Rexroth Germany) allows automatically switch to slow bends in a quick way. X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control. Cutting-edge frequency response hydraulic control technology, more stable machine tools, more reliable operation. The best ratio of parameters, optimal core configuration ensure stable performance, more convenient operation. WC67K standard single-axis back gauge system and single-axis bending angle system, you can choose to add the V-axis compensation function, and select the appropriate mold to bend complex shape workpieces easily. Main Accessories Estun E21 NC control system Y-axis and X-axis system control adjustment Delta frequency converter controls the positioning of X axis and Y axis Using HIWIN ball screw/TBI and light bar to ensure the accuracy of 0.05mm. Front holder support Germany Bosch Rexroth hydraulic valve block Germany EMB oil tube connector Germany Siemens/Local Famous Brand main motor France Schneider Electric Hydraulic and electrical overload protection Top and bottom dies (86 °, R0.6mm, material: 42CrMo) Control System
Product Parameters

Model	Bending Pressure(kn)	Bendling Length(mm)	Vertical Column Distance (mm)	Throat Depth(mm)	Slider Stroke(mm)	Max. opening Height(mm)	X-axis Max. Distance(mm)	Length*Width*Height(mm)	Weight(T)
30T/1600	300	1600	950	230	100	320	300	1800*1200*1620	2000
40T/1600	400	1600	950	230	100	320	300	1800*1200*1820	2500
40T/2200	400	2200	1850	230	100	320	500	2200*1200*1900	2750
40T/2500	400	2500	1850	230	100	320	500	2500*1200*1900	3000
50T/2500	500	2500	1850	230	100	320	500	2500*1200*2000	3400
63T/2500	630	2500	1900	250	100	320	500	2500*1300*2210	4000
63T/3200	630	3200	2560	250	100	320	500	3200*1300*2210	4800
80T/2500	800	2500	1990	300	100	320	500	2500*1400*2300	5000
80T/3200	800	3200	2560	320	100	350	500	3200*1500*2300	6000
80T/4000	800	4000	3200	320	100	350	500	4000*1500*2400	7000
100T/2500	1000	2500	1990	320	120	350	500	2500*1600*2400	6000
100T/3200	1000	3200	2600	320	150	400	500	3200*1600*2600	6800
100T/4000	1000	4000	3200	320	150	400	500	4000*1600*2600	8000
125T/3200	1250	3200	2600	320	150	400	500	3200*1600*2600	7000
125T/4000	1250	4000	3200	320	150	400	500	4000*1600*2600	8500
160T/3200	1600	3200	2580	320	200	460	500	3200*1700*2700	10000
160T/4000	1600	4000	2900	320	200	460	500	4000*1700*2800	11000
160T/5000	1600	5000	3900	320	200	460	500	5000*1900*3100	13500
160T/6000	1600	6000	4900	320	200	460	500	6300*1900*3200	18500
200T/3200	2000	3200	2480	320	200	460	500	3200*1950*2800	11000
200T/4000	2000	4000	2900	320	200	460	500	4000*1950*2800	12500
200T/5000	2000	5000	3900	320	200	460	500	5000*1950*3000	14000
200T/6000	2000	6000	4900	320	200	460	500	6000*1950*3300	20000
250T/3200	2500	3200	2450	400	250	590	500	3250*2000*3200	18500
250T/4000	2500	4000	2900	400	250	590	500	4000*2000*3400	20000
250T/5000	2500	5000	3900	400	250	590	500	5000*2000*3400	23000
250T/6000	2500	6000	4900	400	250	590	500	6000*2000*3400	27000
300T/3200	3000	3200	2450	400	250	590	500	3200*2000*3450	20500
300T/4000	3000	4000	2900	400	250	590	500	4000*2000*3450	22000
300T/5000	3000	5000	3900	400	250	590	500	5000*2000*3450	25000
300T/6000	3000	6000	4900	400	250	590	500	6000*2000*3450	28500
400T/3200	4000	3200	2400	400	250	590	500	3200*2180*3400	22500
400T/4000	4000	4000	2900	400	250	590	500	4000*2180*3400	25000
400T/5000	4000	5000	3900	400	250	590	500	5000*2180*3500	29000
400T/6000	4000	6000	4900	400	250	590	500	6000*2180*3800	34000
500T/5000	5000	5000	3900	400	250	590	500	5050*3500*3700	42000
500T/6000	5000	6000	4900	400	320	590	500	6050*3500*3700	54000
600T/4000	6000	4000	2900	400	320	590	500	4050*4500*3700	44000
600T/6000	6000	6000	4900	400	320	590	500	6050*4500*3700	60000
