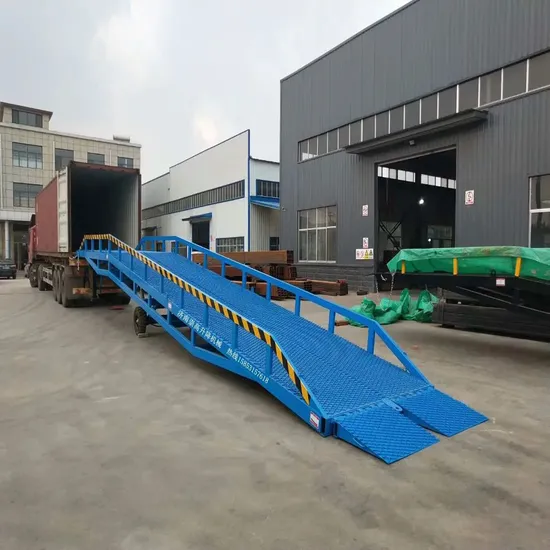

Mobile Hydraulic Lift Table Movable Container Loading Ramp
| US$3,300.00-5,680.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YDCQ
Application
Container Loading Ramp
Lift Mechanism
Hydraulic Ramp
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Capacity
5-15t
Table Size
10*2m
Lifting Range
1-1.7m
Dimension
10.5*2.1*1m
Weight
2700kg
Operation Method
Manual or Electric
Transport Package
Nude
Specification
15tons
Origin
China
HS Code
8428909090
Production Capacity
50000PCS/Year
Product Description
Product Description
Hydraulic mobile loading yard ramp dock leveler is cargo handling auxiliary equipment,is used together with the forklift.
Only need one person operate, can realize the rapid loading and unloading goods.It makes the enterprise to reduce a large number of labor force, improve work efficiency, and gain greater economic benefit.
Product Parameters
| Model | Capacity | Lifting height | Table size | Total dimension | Weight | Operation |
| YDCQ-5 | 5T | 1-1.8m | 10*2m | 10.5*2.08*1.0m | 2800kg | Manual/ Electric |
| YDCQ-6 | 6T | 1-1.8m | 10*2m | 10.5*2.08*1.0m | 2900kg | Manual/ Electric |
| YDCQ-8 | 8T | 1-1.8m | 10*2m | 10.5*2.08*1.0m | 3000kg | Manual/ Electric |
| YDCQ-10 | 10T | 1-1.8m | 10*2m | 10.5*2.08*1.0m | 3100kg | Manual/ Electric |
| YDCQ-12 | 12T | 1-1.8m | 10*2m | 10.5*2.08*1.0m | 3200kg | Manual/ Electric |
| YDCQ-15 | 15T | 1-1.8m | 10*2m | 10.5*2.08*1.0m | 3300kg | Manual/ Electric |
Main Features
★Platform uses special diamond mesh plate,has reliable strength,can ensure the long-term use without deformation.It is antiskid steel nets which benefit for forklift to climb even meets rain or snow.
★Operation: manual or electric, battery can be installed on it;
★Option of Italy imported advanced hydraulic system, with great performance.
★Heavy-duty mobile tyre,Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
★Safety crack-proof valve on pump station.
Detailed Photos
Packaging & Shipping
