500kg 1000kg 2000kg Drying Mixing Machine for Plastic LDPE HDPE Injection

Product Description

Introduction:

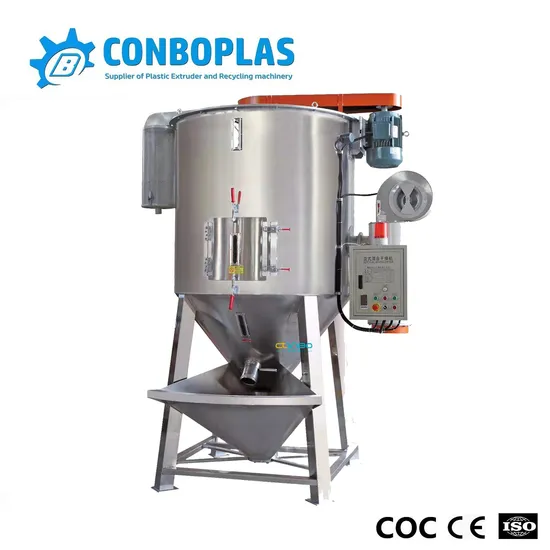

Plastic granule vertical agitating machine ,made of stainless steel, the machine adopts the state-of-the-art technique--spiral mixing, allows mixing storing in large quantity (up to 10 tones) . It is suitable for granular and powder forms of many materials, such as plastic and rubber raw material, animal food, wood sourced, building material, among other fields. The spiral at center elevates materials to top of the tank and then throw them outwards all around in tank to achieve blending purpose. The plastic granule vertical agitating machine overcomes the traditional shortcomings and disadvantages, allows most even and sufficient blending. It is the great aids for plastic extrusion, animal food mixing, building materials blending, and many others.
Features:
1. Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and easy to wash;
2. The frame is of framework design, solid and durable;
3. Propeller is wholly processed after welding, with high concentricity and steady operation;
4. The standing operation allows little space;
5. Mixing in a sealed manner, uniform mixing and no leakage definitely;
6. Small horse-power, large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes;
7. Oil filler and material discharging device are designed at frame bottom, with durable bearings.
Technical specifications:

Model/Item	Driving power (kw)	Heating power (kw)	Output (kg)	Dimension (mm)
VM-500	4	15	500	1200*2650
VM-1000	4	20	1000	1500*2800
VM-2000	5.5	20	2000	1800*3250
VM-3000	7.5	30	3000	2000*3750
VM-5000	7.5	40	5000	2400*4200
VM-6000	11	50	6000	2500*4500
VM-8000	11	60	8000	2750*5100
VM-10000	11	70	10000	3000*5350

Remarks: all the information above is only for your reference; please gather the exact data by contacting us.
