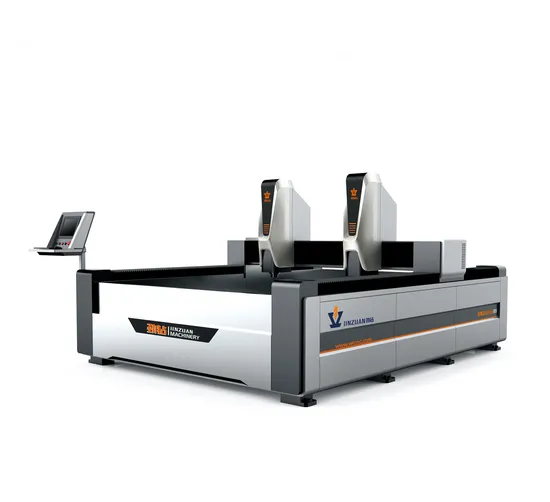

Stone CNC Machine Used in Quartz Stone for Wash Basin Milling

Product Description

Stone CNC Machine Used in Quartz Stone for Wash Basin Milling
Professional cutting machine, granite, marble cutting effect is good; Mechanical structure optimization design, exquisite carving, exquisite pattern, vivid pattern; The machine appearance is beautiful, and the structure is not deformed, high cutting precision, high efficiency.
Product Parameters

Model No.	3013T-2D
Platform Dimension	3000*1300mm
Working Size	2500*1200mm for 1 piece; 1400*1200mm for 2 pieces
Working Table	Aluminum T-Slot Table with PVC Plate
Linear Guide Rail	Y Axis PMI-25 (Two Guide Rails); X Z Axis PMI-30
Spindle Speed	6000-24000rmp/
Lubrication	Automatic Lubrication
Coolant System	Industrial Coolant System
Operating Voltage	AC220V/50HZ or AC380V/50HZ
Engraving Tool	Φ6/8/10/12/14/16mm
Positioning Accuracy	±0.02mm
Repeatability	±0.01mm
Machine Dimension	4300*2300*2300mm
Weight	3200kg

Product Description

1 .The Internet of things technology ofJinzuan cloud mobile phone can intelligently identify machine abnormalities and givereal-timeonlinealarm;
2 .The whole machine adopts three-layer steel structure,tempering aging treatment,rigid and not easy to deform,and the bearing capacity of the machine can reach more than 4tons;
3 .Imported linear double row guide rail(Y-axis4guiderail) is adopted,with large bearing capacity,stable operation and high precision;
4 .Adopt famous brand servo motor,reducer,z-axis with brake,highs peed,high precision and good stability;
5 .When running,stopping and fault alarming,LED lights flash synchronously to prompt;
6 .Constant power spindle motor,strong cutting force and high efficiency;
7 .CNC digital control,power-off memory function,power-off,knife continue carving function.
Detailed Information

Control system:
Support control system customization. NC studio / shanlong / RichAuto DSP control system choosable.
Cooling system
Assemble with water cooling system for machine cooling. Protect the machine being working in a much too hot environment.
Application:
* Bas-reliefs
* Line engraving Cutting, Edge inversing
* Funeral tablets/gravestones, Milestones
* commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays
* 3D engraving, Roman column, column cap & base

Works Display

Certifications

Packaging & Shipping
Packaging technology requirements are mainly rust, moisture, pressure, impact resistance, suitable for storage, transportation and sales.
Equipment is fully protected and boxed before shipment from the factory to ensure that it is in a non-damaged condition upon arrival at the site
Company Profile
FAQ

1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory
is at Shuitou town, Fujian province.
The biggest stone manufacture area in China. Maybe also the biggest importer &
exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat,
facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
