High Speed Universal RAM Milling Machine XL6436c/XL6436cl with Swivel Head CE Certificate Approved

Product Description

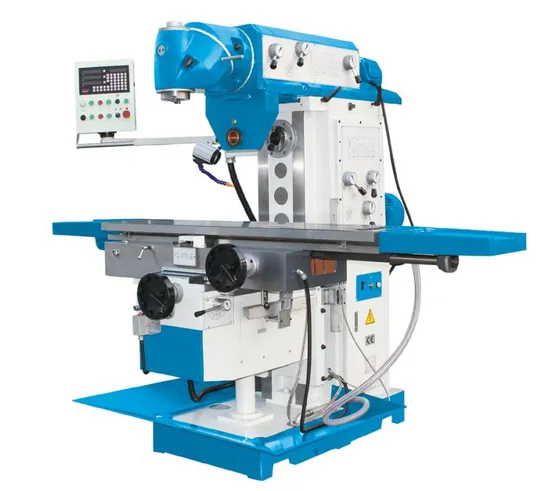

Ram Milling Machine XL6436C/XL6436CL
DRO is optional accessories..
Machine with automatic feed controlled one servo motor in XYZ-axis.
Use one handle to control forward and reverse movement in XYZ-axis.
Specification:

Model No.	XL6436C	XL6436CL
Item No.
Specifications
Table size	1325X360 mm	1600X360 mm
Table travel(XY/Z)	1100/320/450 mm	1300/320/450 mm
Table feed(XY/Z)	30-750/20-500/15-375 mm/min	30-750/20-500/15-375 mm/min
Spindle
Spindle taper	7:24 ISO50(H) 7:24 ISO50(V)
Arm travel	550 mm	550 mm
Distance between spindle nose and table surface	175-625 mm	30-350 rpm
Distance between horizontal nose and table surface	0-450 mm	190~510 mm
Distance between spindle axis and arm surface	200 mm	470~215 mm
Spindle speed range	12 steps 60-1750(V) 12 steps 60-1800(H)
T-slots(NO.idth/pitch)	3/18/80 mm	3/18/80 mm
Other
Main motor power	5.5 (H) 4(V)
Torque of X/YIZ axis AC servo motor	15 N.m
Overall size	2245x2100x2000 mm	2520x2100x2000 mm
Weight	2750 kg	2800 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
