Basic Info.
Application
Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Laboratory, Medical
Main Material
Alloy Steel
Mixing Capacity
1L & Above
Mixing Drum Shape
Circular Groove
Safety Features
Emergency Stop Button, Overload Protection
Special Features
LED Display
Speed Control
Variable Speed
Temperature Control
Without Cooling System
Control Mode
Numerical Control
Rolling Fashion
Rocking/Rolling
Operating Type
Continuous Operating
Transport Package
Card Board
Specification
556*392*98mm
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
65.00cm * 45.00cm * 20.00cm
Package Gross Weight
10.000kg
Product Description
Tube Roller Mixer for Raw Material Sample Testing in New Energy Battery Fields The tube roller mixer is designed for testing and experimenting with raw material samples in the new energy battery industry. With over ten years of experience in manufacturing roller mixers, we have established strong partnerships with renowned battery manufacturers such as CATL (Contemporary Amperex Technology Co. Limited).
Our tube roller mixer is equipped with multiple product lines, ensuring high quality, cost-effective, and steady output. It is an essential equipment for battery research and development, providing reliable and accurate mixing results.
Product Parameters
Action Mode | Rocking/Rolling |
Number of Rolling | 9 |
Speed | 5-300 rpm |
Maximum Load | 10kg |
Control Mode | Numerical Control |
Regular Time | 540min or 99H |
Time of Direction Change | 5-120min |
Roller Size | 340*30mm(L×D) |
Dimensions | 556*392*98mm(W*D*H) |
Weight | 9.0 KG |
Power | DC12V5A |

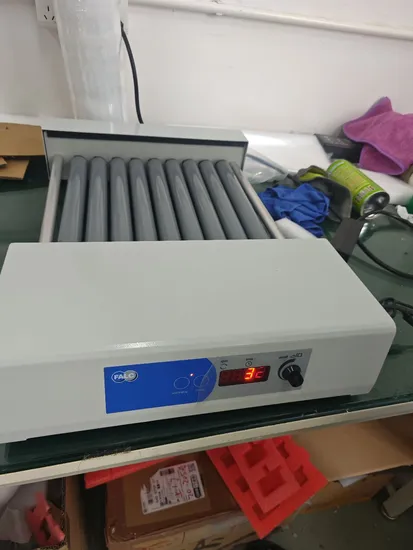

Detailed Photos
Features:
• Accommondation to various types of vessels in the mixer without adding any adapters or assessories
• Maximum load is 10KG
• Nine rollers
• We provide 2 kinds of action mode: Rocking and rolling or rolling only
Tubing can be removed to increase capacity for larger containers
DESCRIPTION: Roller Mixer 9 Tubes Roller (3D Movement), Digital, Variable Speed, Digital Timer
Model | TR6-1 | TR6-2 | TR8-1 | TR8-2 | LTR-1D | LTR-2D |
Action Mode | Rocking / Rolling | Rolling only | Rocking / Rolling | Rolling only | Rocking / Rolling | Rolling only |
Number of rollers | 6 | 6 | 8 | 8 | 9 | 9 |
Speed | 5 to 300 rpm, Digital | 5 to 300 rpm, Digital | 5 to 300 rpm, Digital | 5 to 300 rpm, Digital | 5 to 300 rpm, Digital | 5 to 80 rpm, Digital |
Maximum load | 10 KG | 10 KG | 10 KG | 10 KG | 10 KG | 10 KG |
Controls | Digital | Digital | Digital | Digital | Digital | Digital |
Timer | 9H/99H | 9H/99H | 9H/99H | 9H/99H | 9H/99H | 9H59M |
Direction Times | 10-60 minutes | 10-60 minutes | 10-60 minutes | 10-60 minutes | 10-60 minutes | 10-60 minutes |
Roller size (LXD)mm | 340x30 | 340x30 | 340x30 | 340x30 | 340x30 | 340x32 |
Dimensions (D*W*H)mm | 556x286x98 | 556x286x98 | 556*392*98 | 556*392*98 | 556*392*98 | 556*392*98 |
Net weight | 7.0 KG | 7.0 KG | 9 KG | 9 KG | 9.0 KG | 9.0 KG |
Power Supply | DC 12V, 5A | DC 12V, 5A | DC 12V, 5A | DC 12V, 5A | DC 12V, 5A | DC 12V, 5A |
Our Advantages
Company Profile
GLTlab®: Your Trusted Source for Laboratory Equipment GLTlab® provides access to a wide range of mission-critical laboratory equipment designed to meet the needs of professionals in chemistry, biology, clinical and other fields that require precise temperature control and solution or material mixing.
Our product lineup includes:
Magnetic stirrer hotplates Multiple-position stirrer hotplates Hotplates Stirrers Tube roller mixers Block heaters Melting point devices Rotating mixers At GLTlab®, we understand that every laboratory has unique requirements. That's why we offer customizable equipment options to ensure a perfect fit for your specific needs.
Our hotplates, stirrers, and stirrer hotplates come in a variety of sizes, shapes, and top materials. We also offer different types of multi-position and control options, allowing you to find the perfect solution for your applications.
When you choose GLTlab®, you can expect an integrated and seamless purchasing experience. Our strong global distribution network and stable output ensures timely delivery of your orders.
As a trusted global partner in the laboratory equipment industry, GLTlab® is committed to providing the highest quality products and service. Our own brand is the best guarantee.
Choose GLTlab® for all your laboratory equipment needs and experience the difference of working with a reliable and reputable supplier.
Certifications
FAQ
1. How to pick up the best among these models?
A: Tell us your request on product and almost target price, we recommend you the most suitable model. Selling you the most expensive product is not our goal, selling you the most suitable is!
2. Do you accept OEM (Original Equipment Manufacturer) service?
A: Yes! We accept any OEM/ODM/OBM service.
3. What kind of warranty will be offer?
A: We provide one year guarantee for our products.
4. When can I get the price?
A: We usually quote as soon as we get your inquiry. Please tell us your email if you need a urgent reply, we will contact you ASAP.
5. Can we visit your factory?A: Of course, welcome to visit us if you come to China.
6. Why choose us?
A: We start OEM/ODM/OBM service from 2010, can offer the best equipment and competitive price.
Packaging & ShippingPackaging: Standard export corrugated paper board cartonsShipping: By sea freight or air freight.
