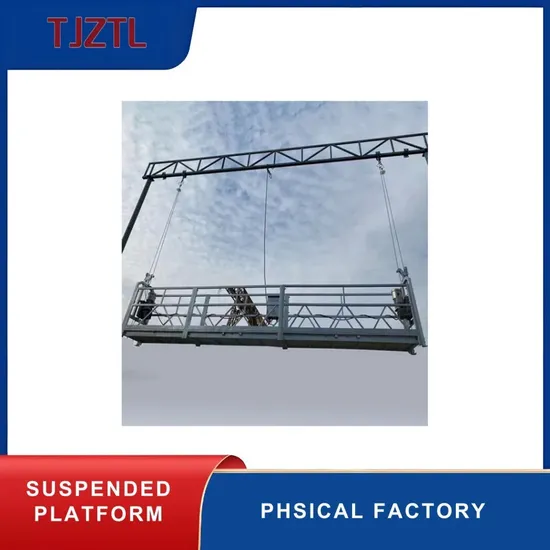

Zlp800 Andamio Suspended Access Platform for High-Rise Construction Work

Product Description

Product Description

Name			Suspended Platform Models and Main Parameters
			ZLP1000	ZLP800	ZLP630	ZLP500	ZLP260
Rated Load Capacity			1000kg	800kg	630kg	500kg	260kg
Lifting and Descending Speed			9~11m/min
Size of Suspended Platform (Length × Width)			(2.0m×4)×0.7m	(2.5m×3)×0.7m	(1.5m+2m+2.5m)×0.7m	(2.5m×2)×0.7m	Hanging - chair - style
Steel Wire Rope			Structure: 4 × 31SW - PP - 9.1, Minimum Breaking Force: 65 KN	Structure: 4 × 31SW + FC - 8.3, Minimum Breaking Force: 53 KN	Structure: 4 × 31SW + NF - 8.3, Minimum Breaking Force: 53 KN
hoist	Model		LTD1000	LTD800	LTD630	LTD50	LTD26
	Winding Mechanism Form		"α" shape
	Rated Lifting Force		10KN	8KN	6.3KN	5KN	26KN
	electric motor	Model	YEJ100L1-4	YEJ90L-4	YEJ90L-4	YEJ90S-4	YEJ80-4
		Power	2.2KW	1.8KW	1.5KW	1.1KW	0.8KW
		Voltage	AC380V				AC220V
		Braking Torque	15.2Nm
Safety Lock	Type		Swing - arm - type Anti - tilt
	Model		LS30	LS30	LS30	LS30	LS30
suspension mechanism	Quantity		Two sets				One set
	Adjustment Height		1.00-1.70m
	Front Beam Extension Length		0.7~1.7
Quality	Suspended Platform (including Hoist, Safety Lock, Electrical Control Box)		475kg (steel) 337kg (aluminum)	435kg (steel)	380kg (steel)	325kg (steel)	50kg (steel)
	Suspension Mechanism		2×175kg				175kg
	Counterweight		1000kg		1000kg	750kg	350kg
	Complete Machine		1000kg (steel), 862kg (aluminum basket)	950kg (steel)	890kg (steel)	820kg (steel)	400kg (steel)
			Ambient temperature: -20°C to +40°C
			Ambient relative humidity ≤ 90% (at 25°C)
			Power supply voltage deviation from rated value ± 5%
			Working wind speed ≤ 8.3m/s (equivalent to Beaufort scale 5)

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
Q: What is the minimum order quantity?A: Our minimum order quantity is 1 unit. You can place flexible orders based on your needs. Additionally, accessories can be purchased separately if required, offering a tailored service for your specific needs.Q: What is the payment process and method?A: The payment method is T/T (telegraphic transfer). Full payment is typically required before shipment. If you have specific payment requirements, please contact our sales team for a customized payment solution.Q: What is the delivery time?A: Standard products are generally in stock and ready to ship within approximately 3 days. For customized products (such as non-standard designs), delivery times may vary. Please contact our sales team for detailed information on custom lead times.Q: What advantages does your factory have?A:We are the only company in China with an independent design department, offering comprehensive support from design to delivery. You can provide us with your construction drawings, and we will offer professional installation advice, quantity recommendations, and customized construction plans to ensure the smooth progress of your project.Q: How do you ensure product quality?A: We have strict quality control and testing procedures for each piece of equipment to ensure it is fully tested and adjusted before leaving the factory. All materials used are from well-known and reputable brands to guarantee the high quality and long-term stability of our products.Q: What after-sales support do you offer?A: We provide comprehensive after-sales support for every order. Spare parts are included with your shipment to ensure the long-term reliable operation of your equipment. Additionally, we offer professional installation video tutorials, and our expert after-sales team can provide online technical support and repair guidance via video to resolve any issues quickly.
