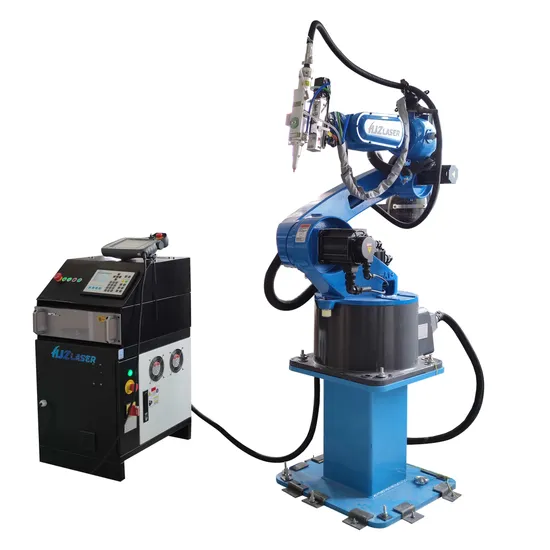

Automatic Laser Welders Industrial Robotic Arm Welding Robots Robot Arm 6 Axis

Product Description

Automatic laser welders industrial robotic arm welding robots robot arm 6 axis
Product Description

Handheld Fiber laser Welding Machine
Model	HJZ-1000-Robot-weld
Laser Power	1000W
Laser Type	Fiber laser
Laser wavelength	1080nm
Optical Quality	less than 1.2 M²
Power Range	10-100%
Working Mode	Continuous
Output Stability	less than 3%
Positioning	Red light
Max Modulation Frequency	20KHz
Certification	CE
Power supply	380-420V
Weight	Approximately 300kg
Size	600x930x1050mm
Warranty	1Year
Laser focus	F=200MM

Advantages:
1. The laser welding machine adopts 1000 watt fiber laser, which has high photoelectric conversion efficiency and long life of 100, 000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.
2. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
3. High cooling rate, which can weld fine weld structure and good joint performance.
4. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
5. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
6. No consumables, small size, flexible processing, low operating and maintenance costs.
7. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Application:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.
Customers Review
Packing and Delivery
Warranty & Service
Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
After-sale service:
1) 1 year warranty for laser metal cutting machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.
FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
