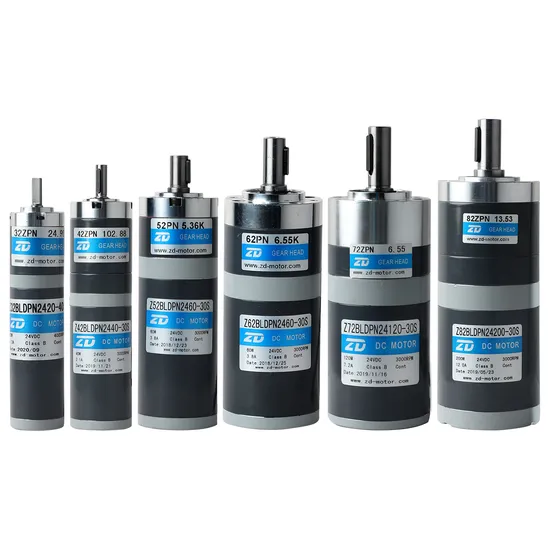

ZD Round Flange Brushless DC Electric Precision Planetary Gear Motor With Speed Controller

Product Description

ZD Round Flange Brushless DC Eletric Precision Planetary Gearmotor With Speed Controller
Detailed Photos
Product Parameters
MODEL:Z62BLDP2460-30S/62PM 8.63K
MORE SPECIFICATION FOR TRANSMISSION PLANETARY GEAR MOTOR:

CONSTRUCTION:	BRUSH / BRUSHLESS
MOTOR OUTSIDE DIAMETER:	32mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105 mm / 120mm
PLANETARY GEARBOX DIAMETER:	32mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105 mm / 120mm
	Conventional products:62mm motor match with 62mm gearbox. Customized product: 62mm motor match with 52mm gearbox, 72mm motor match with 120mm gearbox (example)
VOLTAGE:	12 V / 24 V / 48 V
RATED POWER (watts):	20 / 25 / 40 / 60 / 90 / 120 / 150 / 180 / 200 / 300 ......750(MAX)
RATED SPEED(rpm):	450/540/750/1000/1500/2000/2500/3000 (can be customized)
PROTECTION GRADE:	IP 20 / IP 44 / IP 55 / IP 65 (According to customer request)
GEAR RATIO:	One Stage	Two stage	Three Stage
	3.65/5.36/6.55/8.63	13.53/18.92/24.65/28.05/33.92/44.69/58.22	67.08......392.98
	High speed	Medium speed	Low speed
	Output Torque Range:0.16 N.m---300 N.m ( can be customized)
SHAFT:	Diameter range:6 mm-32mm, key-way type / D-cut type / Bare type ( can be customized)
Accessories:	Encoder/ Brake / Connector

Other Related Products Click here to find what you are looking for:
Customized Product Service
Company Profile
FAQ Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Please contact us if you have detailed requests, thank you !
