Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine

Product Description

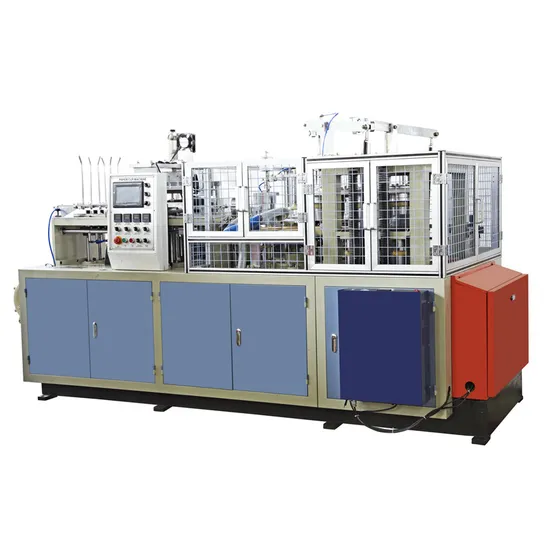

RD-LB120-3600B Paper bowl forming machine is a kind of full automatic forming machine. It has functions of feeding the paper row by row automatically and the devoice to avoid the paper retreat (this makes paper feeding more precise), ultrasonic sealing, paper cylinder transferred by mechanical arm, oiling, bottom punching, bottom folding, preheating, bottom knurling, and cup stacking.
It has the invertor for automatic speed adjusted, and the bottom punching is adopted servo motor (when there is paper body, the bottom paper will be send, if not, the bottom paper will not send, this can save the paper, no waste).
The inner structure adopts vertical axis to drive the motor. And it is with automatic lubrication system to reduce the friction of each mechanical part, and no need to add the oil by manual.
The machine stops automatically if any problem which controlled by sensors we installed, so that the machine is well protected and becomes more durable.
We adopt separate cam drivers on the left and right of cup side sealing device, so the working status is quiet and stable, which is the top technology owned by us in China.
Main technical parameter:
Size of cup 35OZ(can be adjusted by mould)
The material of paper 180-380g/(single or double pe coated paper)
Speed of production 45-50pcs/min
Power supply 380v/220v 50Hz 3PH
Total power 6kw
Weight 2500kg
Overall dimensions 3000x1200x1580mm(LxWxH)
