with CE Watermelon Pumpkin Seed Separator Extractor Machine

Product Description

With Ce Watermelon Pumpkin Seed Separator Extractor Machine
Product Description
Introduction of the Pumpkin Seeds Extraction Machine The machine is connected with a small tractor through handing body. Tractor powered by propeller shaft passed to the stirring axle of the machine, through the sprocket and chain under the action of the power chain, assigned to separate consecutive axes, broken shaft, cleaning wheel shafts, the machine works.

Product Parameters

Model:	DM-DG500
Capacity	500kg/h
Size	2050*1200*1280mm
Weight	550kg
Driving type	Tractor/18hp diesel engine /7.5kw motor

Advantages of the pumpkin seed extractor 1. The power input of the machine adopts the wheel tractor power output shaft mode, which has strong power flexibility;
2. The frame of the machine is made of high-quality steel, which has the characteristics of reasonable structure, strong and durable;
3. Crushing, separation and cleaning devices are stamped and welded by special molds to ensure reliable performance;
4. The machine adopts a unique suspension mode and spiral barrel, which is easy to remove melons, weeds and other plants, which can save time and improve work efficiency.
Product Application
Applicaton of the Pumpkin Seeds Extraction Machine This machine is specially used to extract the seeds from the ripe pumpkin. It can crush the pumpkin, press and separate the seeds from the pumpkin skin and flesh , cleaning the seeds.This machine is mainly used for collecting and removing seeds of melons. Users order, choose different specifications of cleaning screen, can be suitable for different sizes of melon seeds particles collection. Working principle of the pumpkin seed extractor 1.The worker put the pumpkin into the hopper of the machine; 2.The crushed pumpkin will be transported to the separating drum; 3.The separating shaft will mix, then the pumpkin skin and most of part of the pumpkin flesh will get out of the separating drum, the pumpkin seeds and liquid will get into the mixing box; 4.Because of the moving of the stirring shaft, the pumpkin seeds and the small part pumpkin flesh will get into the cleaning barrel; 5.Because of the moving of the cleaning shaft, the pumpkin and the pumpkin seeds will be separated and cleaned well. The pumpkin seeds will be get out under the pressing of the cleaning shaft.

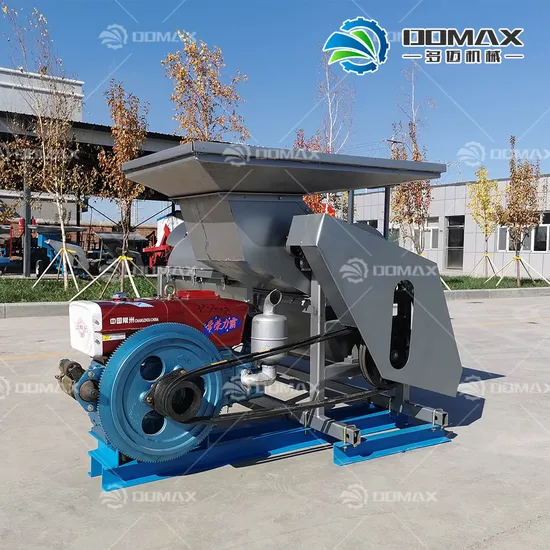

Machine Picture Display
