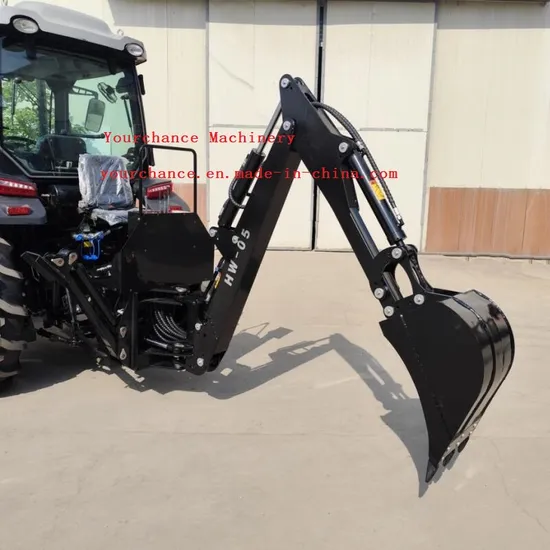

High Quality Lw Series Lw-4 -Lw-12 Backhoe Excavator for 12-180HP Tractor

Product Description

Product Description
High Quality Ce Certificate Lw Series Lw-4 -Lw-12 Backhoe Excavator for 12-180HP Agricultural Wheel Farm Garden Tractor

Product Parameters
Backhoe Main Performance and Features:
1).It is used for ditching in farms and grazing lands,digging pool,cleaning waterways as well as
assistant excavating work in construction and building roads.
2).Hydraulic transmission is used,Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
3).To better accomplish different kinds of work,bucket of different sizes can be selected and mounted on it.
Backhoe Main Specification and Technical Parameters:

Backhoe Model	LW-5		LW-6	LW-6E	LW-7	LW-7E	LW-8	LW-8E	LW-10	LW-10E		LW-12
Matching Tractor (hp)	15-25		20-35	20-35	30-55	30-55	50-90	50-90	70-120	70-120		100-180
Max. Digging Depth (mm) (A)	1650		2000	2000	2400	2400	2800	2800	3200	3200		3655
Max. Unloading Height (mm) (B)	1530		1860	1860	2050	2050	2380	2380	2650	2650		3627
Max. Digging Height (mm) (C)	2600		2970	2970	3210	3210	3460	3460	3770	3770		5040
Working Radius (mm) (D)	2300		2700	2700	3140	3140	3600	3600	3920	3920		4510
Ground Clearance (mm) (E)	450		450	450	450	450	500	500	500	500		700
Side Shift Distance (mm) (F)	0		0	770	0	770	0	1000	0	1200		0
Min. Transporting width (mm) (G)	1150		1700	1470	1700	1470	1700	1700	1850	2000		2100
Max. Width of Supporting legs (mm) (H)	2100		2200	1470	2200	1470	2200	1700	2300	2000		2550
Standard Bucket width (mm)	200-350		360	360	408	408	460	460	510	510		550-580
Bucket capacity (m3)	0.03		0.04	0.04	0.05	0.05	0.06	0.06	0.07	0.07		0.13
PTO Hydraulic system (option)	6/8/21(usual 6) Spline, Hydraulic Pump, Gearbox ,Oil tank, Tubing
Net weight (kg)	360	550		600	560	620	630	700	800	1000	1500

Certifications
High quality Tractor Backhoe excavator have ISO,CE, PVOC COC, CO etc certificates
Packaging & Shipping
Our Advantages

After Sales Service
Perfect after-sale service for both Distributors and Private customers

Best price will be quoted for you as soon as receive your Requirement !
