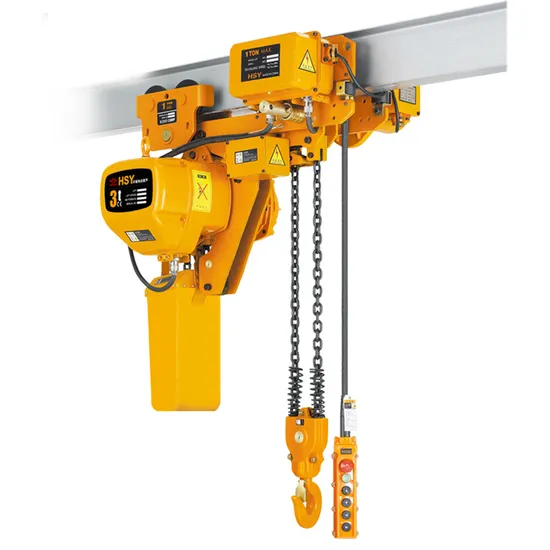

7500kg 10000kg Electric Chain Hoist with Electric Trolley Vehicle Hoist
Basic Info.
Model NO.
HSY
Application
Double Beam Crane
Type
Electric Hoist
Sling Type
Chain
Lift Speed
>8m/min
Maximum Lifting Height
10m
Certification
CE
Condition
New
Hook
Carburize
Material
High Quality Material
Max Lifting Height
10m
Max Lifting Capacity
5 T
Voltage
Customized
Payment Term
T/T, L/C
Loading Port
Shanghai
Transport Package
Plywood
Specification
CE, ISO, TUV, SGS
Trademark
Hugong/ Yiying
Origin
Shanghai China
HS Code
8425110000
Production Capacity
3000 Set /Month
Packaging & Delivery
Package Size
100.00cm * 80.00cm * 100.00cm
Package Gross Weight
45.000kg
Product Description
HSY-electric chain hoistProduct Description
1) Compact and high efficient motor, low power consumption
2) Hoist body pressing steel structure, high strength body, light and compact
3) Most tensile safety hooks: Both the top and bottom hooks are made of high tensile alloy steel with special treatment; Hook will not break and deform gradually under a sudden extra-load
4) Compact and beauty chain container: High strength plastic container has outstanding durability
5) Limit switch devices fitted at both top and bottom ends: Switch off power automatically to prevent load chain from running out
Features
HSY electric hoist has many advantage features as following:
1)Chain material: Carburize
2) protection bag for chain
3)low headroom
4) double reduction
5)capacity (t): 1-5
6) Speed: Two Speed
7) Low Headroom
| Model HSY | Capacity TON | Lifting Height M | Lifting Speed M/MIN | Lifting motor | Drive motor | I beam | |||||||||
| Power KW | Rotational Speed R/MIN | Phase | Voltage V | Frequency HZ/S | Power KW | Rotational Speed R/MIN | Running speed M/MIN | Phase | Voltage V | Frequency HZ/S | |||||
01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 110-178 |
