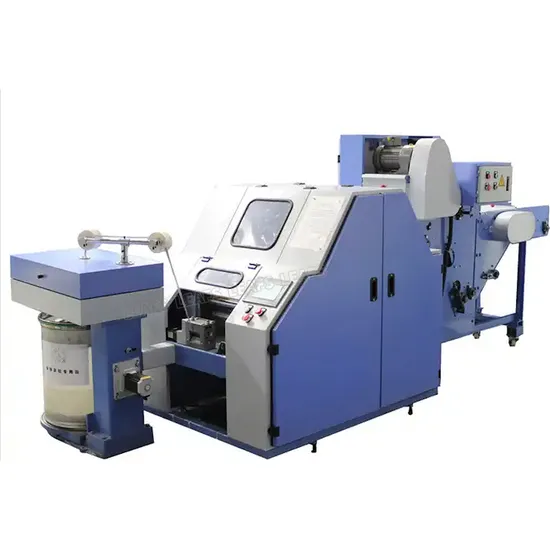

Lab Fiber Carding Machine for Sample University Laboratory Small Sample Carding Machine

Product Description

Product Description
The sample machine cards all kinds of cotton, Pure wool, rabbit hair, camel hair,chemical fiber into slivers or web,for use in the subsequent tests.The carding machine is part of the mini spinning system.
It's widely used in spinning factories, wool mills,semi-worsted mills ,dyeing factories, school laboratories,university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
If you require, we can supply you the coiler and feeder togehter with the machine.

Product Parameters

Model	LS304A
Machine width	360mm or customized
Feeding size	400mm
Cylinder diameter	450mm
Doffer diameter	220mm
Roller diameter	165mm
Working roller diameter	110mm
Wiper roll diameter	90mm
Speed	Adjustable(Frequency converter control)
Raw material	Cotton/wool/chemical fiber/banana leaf
Max fiber length	About 100mm
Capacity	5-10gks/h
Speed	600r/min
Dimension	2800mm*900mm or Customized
Core components	PLC, Engine, Bearing, Gearbox, Motor,frequency converter
Stripping method	Fly comb or roller
Voltage	220V/380V or customize as your request

Function type
Features

Imported frequency converter control, high efficiency. Mini type machine, save researching cost and easy to operate and maintain. Can be used for wool fiber,cotton or chemical fibers. Can equipped with villus bucket or hopper to improve the quality of output sliver/web It can produce web or sliver according to customer's selection. It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed. With full-closed protective cover. Two rollers feeding. Machine Images
Customer Show
Our Advantages
Based on the Digital Textile Technology Research Institute of Qingdao University, we have developed the whole sample spinning production line and lab weaving line. It is used for teaching research and new product development in textile colleges and scientific research institutions.
Interntional advanced inspection instrument.
Leafs Company devotes itself to control and improvement of products'quality, spent more investment importing international advanced testing and inspection instruments for researching and development of new products and daily inspection of ordinary products.
Company Profile
Packaging & Shipping
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered. FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
