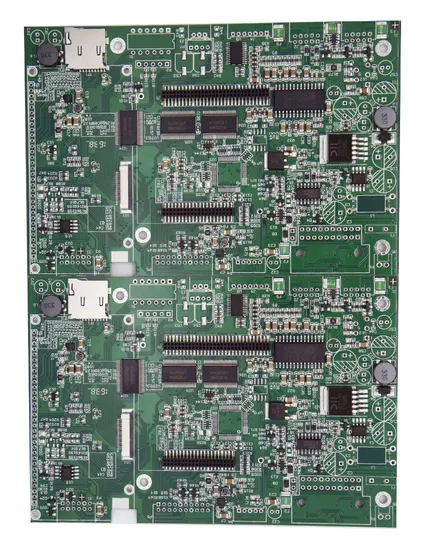

OEM Service Ceramic PCB, Cem-1 PCB, PCB Circuit Board, PCB Manufacturer

Product Description

... Shenzhen Jingxin Electronic Technology Co.,Ltd. ...
Built since 2002, is a almost 20 years professional company dedicating to PCB&PCBA industry. Our factory located in Shenzhen, and have dust-free workshop which cover an area of over than 10000m², almost 550 employees, more than 30 production lines include SMT,DIP,automatic welding,aging test and assembly. We have equipments of over 50 SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI), 12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB dispenser, laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testing procedures, our products carry out the quality system standard strictly. With end to end one-stop manufacturing solution, the company has become a benchmarking enterprise in the industry, and has been earning industry praises and good reputation from domestic and international customers depending on rigorous, techniques, good quality, fast delivery and excellent service.
... factory ...
... Equipment ...
... strength ...

... products ...

... Specification ...

Term	Detailed Specification of PCBA Board Manufacturing
Layer	1-30 layer
Material	FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
Board thickness	0.4mm-4mm
Max.finished board side	1020mm*1000mm
Min.drilled hole size	0.25mm
Min.line width	0.10mm(4mil)
Min.line spaceing	0.10mm(4mil)
Surface finish/treatment	HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating
Copper thickness	1/2OZ 1OZ 2OZ 3OZ
Solder mask color	green/black/white/red/blue/yellow
Inner packing	Vacuum packing,Plastic bag
Outer packing	Standard carton packing
Hole tolerance	PTH:±0.076,NTPH:±0.05
Certificate	ISO9001,ISO14001,ROHS,CQC
Profiling Punching	Routing,V-CUT, Beveling
Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

Technical Requirement	Professional Surface-mounting and Through-hole soldering Technology
	Various sizes like 1206,0805,0603 components SMT technology
	ICT(In Circuit Test),FCT(Functional Circuit Test) technology
	PCBA Assembly With CE,FCC,Rohs Approval
	Nitrogen gas reflow soldering technology for SMT
	High Standard SMT&Solder Assembly Line
	High density interconnected board placement technology capacity
Quote&Production Requirement	Gerber File or PCBA File for Bare PCBA Board Fabrication
	Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly
	To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.
	Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate
OEM/ODM/EMS Services	PCBA, PCBAAassembly: SMT & PTH & BGA
	PCBA and enclosure design
	Components sourcing and purchasing
	Quick prototyping
	Plastic injection molding
	Metal sheet stamping
	Final assembly
	Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
	Custom clearance for material importing and product exporting
Other PCBA Assembly Equipment	SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4
	Reflow Oven: FolunGwin FL-RX860
	Wave Soldering Machine: FolunGwin ADS300
	Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service
	Fully Automatic SMT Stencil Printer: FolunGwin Win-5

... certification ...

... exhibition ...
... Packing and shippment ...

... FAQ ...
Q1.What is needed for quotation?
A: PCB : Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: There is no MOQ in JXE PCBA. We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q6. Do you accept process materials supplied by clients?
A Yes, we can provide component source, and we also accept component from client.

One-Stop OEM PCB Assembly Professional Turnkey PCBA
