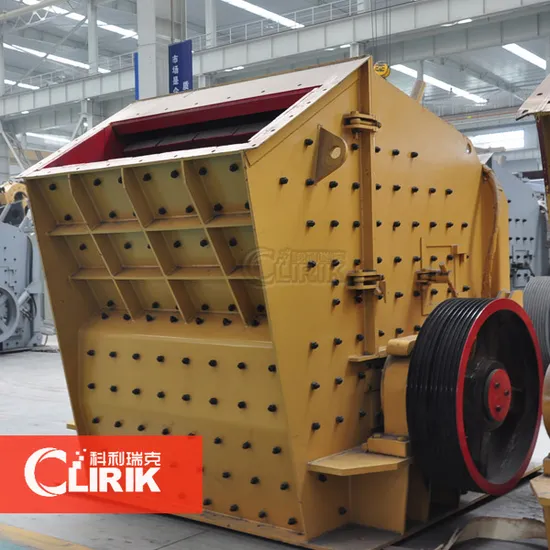

The Crusher Machine for Mineral Ores Crushing for Calcium Carbonate Gypsum Limestone Quartz Graphite Calcite Powder Factory

Product Description

Product Overview
Advantages
1. Widely used in metallurgy,mining, chemistry, cement, construction, refractory materials and ceramics.
2.Hammer is made of high chrome,and liner board is made of wearable materials.
3.Specially designed tooth impact plate,more suitable for crushing hard rock,high efficiency,low consumption.
4.Final products is cubic,discharge opening is adjustable.
5.Make the crushing flow chart simple.
Application
Impact Crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.
Working principle
Impact Crusher crushes material by striking energy.
1.When it works,the motordrives the rotor rotate at a hign speed, on which the blow bar is installed.
2.As soon as the material get into the affecting area of the blow bar,they will be stroke by the blow bar and be thrown to the impact devices around the rotor.
3.The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size.
4.The clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.
Crusher Model
Main technical parameters

Modle	Size (mm)	Feeder Size (mm)	Input Size (mm)	Capacity (t/h)	Motor (kw)	Weight (ton)
PF-0608	644*740	320*770	≤100	10-20	30	4
PF-0807	850*700	400*730	≤300	15-30	30-45	8.13
PF-1007	1000*700	400*730	≤300	15-60	37-55	9.5
PF-1010	1000*1050	400*1080	≤350	50-90	55-75	14
PF-1013	1000*1300	650*1350	≤350	80-120	90-110	12
PF-1210	1250*1050	400*1080	≤350	70-130	110-132	17
PF-1214	1250*1400	400*1430	≤350	90-180	132-160	22
PF-1315	1320*1500	860*1520	≤400	120-250	180-260	26
PF-1320	1320*2000	860*2030	≤500	160-350	300-375	30

Other Products Offered
Company Profile
Company brief introduction
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
our service
Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you.
our certificate
our exhibition
customer visiting
FAQ
1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
