High Quality Concrete Mixer Popular Mobile Batching Plant
| US$5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YHZS
Type
Concrete Mixing Plant
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
60m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Cycle Time
1 Min
Total Weight
18t
Weighing Accuracy for Aggregate
2%
Cement Weighing Accuracy
1%
Water Weighing Accuracy
1%
Additive Weighing Accuracy
1%
Aggregate Feeding Mode
Belt Conveyor
Discharging Height
4m
Foundation
Needed
Warranty of Core Components
2 Years
Capacity
25-90m3/H
Aggregate Weighing Type
Accumulating Weighing
Transport Package
Container
Specification
6.5t
Trademark
Shengmao
Origin
Henan, China
HS Code
8474310000
Production Capacity
20 Sets/Month
Product Description
Product Description

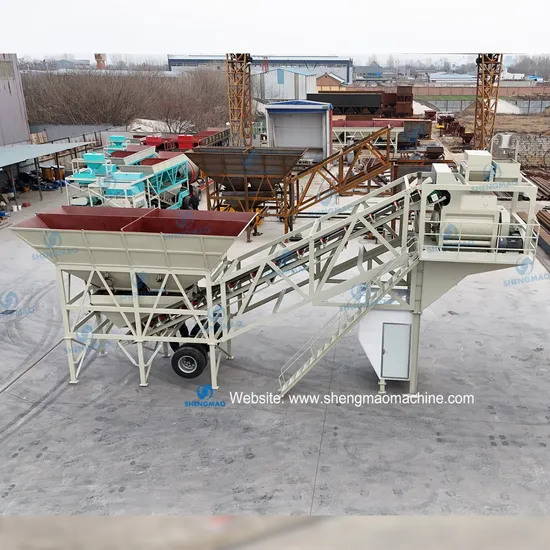

YHZS type Mobile concrete batching plant We produce concrete batching plant with good quality&competitive price for more than 20 years, Mobile concrete batching plant is our feature product.
Features of YHZS Mobile concrete batching plant:
1. Portable, equipped with 4 tyres, easy to move another jobsite
2. 4m discharging height, easy for truck to receive concrete
3. Compact, small footprint is needed
4. Need foundation or concrete floor(at least 300mm deep)
| YHZS series of mobile concrete batching plant | ||||
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer (twin-shaft mixer) | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Control system | Panel | Computer | Computer | Computer |
| Total power (kw) | 60 | 72 | 92 | 102 |
| Total weight (T) | 14 | 22 | 26 | 29 |
Certifications
After Sales Service
After sales services
1. providing foundation drawing, circuit diagra and operation manual; 2. providing commercial invoice, packing list, bill of lading etc. to help customer with customs clearance;
3. sending engineers to customer's job site to help customer with machine installation and operators training;
4. spare parts supply, machine problems solving.
