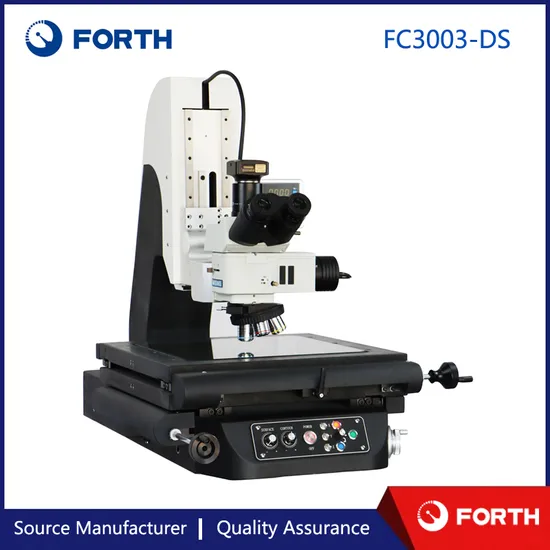

Advanced Electric Fine Tuning Microscope for Precision Analysis

Product Description

Intro
Motorized control for Zaxis(Minimum graduation up to 0.0005mm)
Standard for BF observation/Optional for BF&DF and DIC
Zaxis support FA and high measurement
Motorized or manual nosepiece
Support long range lens
Easy to operate on Micro scale object with high accuracy and precision
Infinity-corrected apochromat optical system Product Description Technical parameters

Model	FC-3002-DS	FC3003-DS	FC4003-DS	FC5004-DS
Model definition	DS:Z-axis motorized contro /S:Z-axis manual control
Measurement Size	300×200×150(mm)	300×300×150(mm)	400×300×150(mm)	500×400×150(mm)
Glass Size	360×260(mm)	330×330(mm)	460×360(mm)	560×460(mm)
Work Stage Size	456×366(mm)	456×466(mm)	556×466(mm)	706×606(mm)
Dimensions	780×580×1000	780×680×1000(mm)	950×680×1100(mm)	1080×880×1100(mm)
Weight	150 KG	180KG	250KG	300KG
Tube	Trinocular tube with TV Camera
Observation Mode	Standard for BF observation/Optional for BF&DF and DIC,Polorized/Support FA
Eyepieces	10X
Objectives	Plan semiapochromat Metallurgical Objectives for BF 5x,10x,20x,50x 100x(Optional)
Nosepiece	Manual Quintuple
Reflected Light	Adjustable aperture diaphragm and field diaphragm;Slot for filter and polarizer
Transmitted Light	LED White light/Optional for other color
Focus	Motorized
Linear Scale	XYZ0.0005mm or 0.0001mm
Accuracy	X-Y≤(2.5+0.02L)um Z≤(4+0.02L)um L:mm
Power	220v±10%/110v±10%(AC) 50Hz

Detailed Photos
