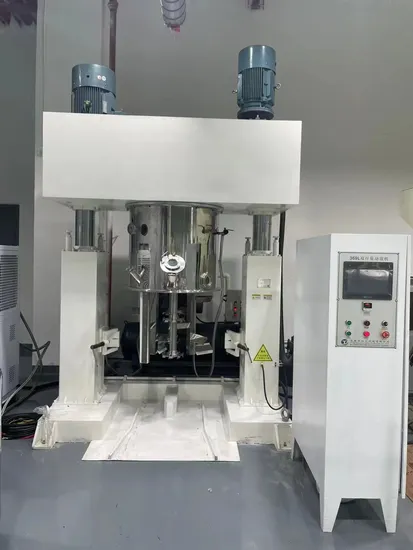

Silicone Sealant, PU Sealant Mixer Gantry Type Vacuum Planetary Mixer with Disperser

Product Description

Silicone Sealant/Glue/Adhesive/Paste Dispersing Equipment Multifunctional Power Mixer Machine Product Description ZR multifunctional dispersing machine is an efficient homogenizing mixer,which is the main equipment for silicone sealant,it can produce high viscosity material according to customer's customized demand requirement. Our dispersion machine has a great sealling and vacuum function as well as its good exhaust defoaming effect. Working capacity range from 100 L to 3000 L.Power is designed according to the material viscosity.
This high speed dispersion mixer has a widely used in adhesive,cosmetics,chemical products,battery,foodstuff,pharmaceutical, plastic industries, and ect.
There is three motors in our dispering mixer to make sure it can provide enough power during working, also there is three stirrers in differnt forms in the Disc, one stirrer rotates around the axis of the Disc body,other two stirres rotates around their axis with different speeds,so all raw material can do complex stirring movement in the Disc by strong shearing and kneading to be base material (PU sealant, RTV sealant, HTV sealant, Acrylic sealant,Paste,ect)
Its "E" type scraper design in our dispering power mixer rotates around the axis of Disc body to scrape out the raw material stuck on the wall and bottom to make the base material have better effect.
Product Parameters

Model:	3000L	1000L	500L	300L	200L	100L
Cylinder Size(MM)	Φ1600*1500	Φ1200*1000	Φ1000*850	Φ850*650	Φ750*650	Φ650*450
Design Volume(L)	3014	1130	668	369	265	149
Usable Volume(L)	3000	1000	500	300	200	100
Stirring Power(KW)	30	22	18.5	11	7.5	5.5
Stirring Rotate Speed(r/min)	0-64	0-64	0-50	0-50	0-50	0-50
Dispersing Power(KW)	37*2	30*2	22*2	7.5*2	5.5*2	4*2
Dispersing Rotate Speed(r/min)	0-2500	0-2800	0-2500	0-3600	0-3600	0-3600
Dimension(MM)	3900*2100*4800	2600*1350*2649	2598*1300*3125	2080*1140*2235	1980*1040*1700	1980*940*1600
Weight(KG)	12000	7000	4200	2500	2200	1800

Detailed Photos
