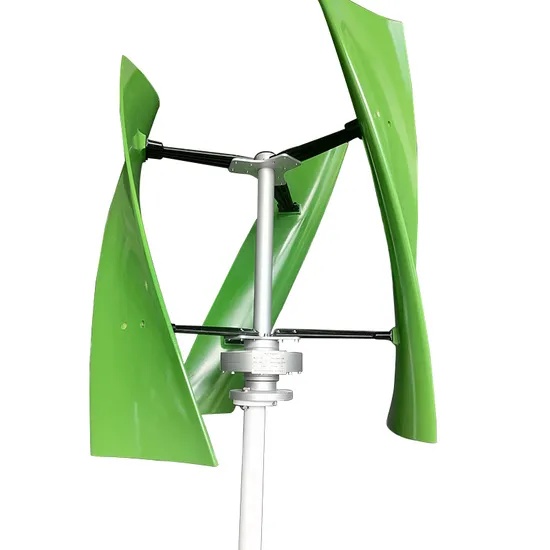

Three Phase 220V 380V Alternative Energy 5kw Vertical Axis Wind Turbine Generator

Product Description

Three Phase 220V 380V Alternative Energy 5kw Vertical Axis Wind Turbine Generator
Product Parameters

Type	NE-1000FH	NE-2000FH	NE-3000FH	NE-5000FH	NE-10000FH
Rated power	1KW	2KW	3KW	5KW	10KW
Max power	1.5KW	2.5KW	3.5KW	6KW	12KW
Rated voltage	96V/120V	96V/120V	96V/120V	120V/220V	220V/380V
Start up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	12m/s	12m/s	12m/s	12m/s	12m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s
Weight	70kg	80kg	90kg	100kg	120kg
Wheel diameter	1.5m	1.67m	2.1m	2.5m	4m
Wheel height	2m	2.4m	2.8m	4m	5.6m
Blades material	Aluminum alloy
Blades number	3
Generator	Three phase permanent magnet AC generator/maglev generator
Control system	Electromagnet
Speed regulation	Automatically adjust windward
Working temperature	-40°C~80ºC

Detailed Photos
Working Structure
Company Profile
Certifications
FAQ Q: Does the System Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
Q: Distance between wind turbine, controller and battery?
A: Normally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
Q:Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual average wind speed .
3. What kind of system do you want? On-grid or off-grid?
Q:Can I only buy parts of the whole system?
A: Yes, you can only buy wind turbine, controller, inverter etc.
