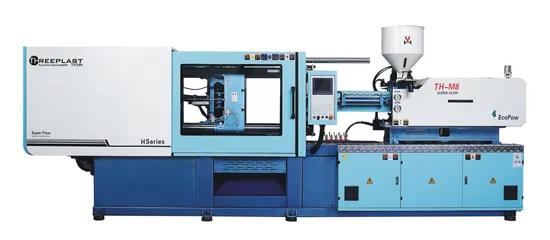

Automatic PVC Pipe Fittings Making Machine Plastic Injection Molding/Moulding Machine

Product Description

This Servo drive machine is designed For your PVC products Processing applications . this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a electroplating screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with PVC material and with the most complex of molds .

Inovance Servo Drive Sumitomo Servo Pump Phase Servo Pump

TH280PVC
Injection Unit		A	B	C
Screw Diameter	In	2.36	2.56	2.76
	mm	60	65	70
Screw L/D ration	L/D	22.7	20.9	19.4
Shot volume	in3	47.40	55.63	64.54
	Cm3	777	912	1058
Shot weight (PS)	g	707	830	963
	oz	24.94	29.28	33.97
Injection Pressure	psi	24360	20735	17835
	Mpa	168	143	123
Max screw speed	rpm	190
Clamping Unit
Clamping Force	KN / T	2800 / 280
	U.S.ton	308
Opening stroke	In	23.23
	mm	590
Tie-bars distance	In	24.21 X 24.21
	mm	615 X 615
Max.mold height	In	24.8
	mm	630
Min.mold height	In	7.87
	mm	200
Ejector Stroke	In	5.91
	mm	150
Ejector force	KN	70
	U.S. ton	7.7
General
Pump power	Kw	37
	HP	49.58
Heating capacity	Kw	18.3
	HP	24.52
Oil tank Capacity	Litre	450
Machine Dimensions	In	235.43 X 65.35 X 92.52
	m	5.98 X 1.66 X 2.35
Machine weight	Kg	8700
	Lbs	19140
