Full Automactic Machining Tool CNC Center for Metal Working with Low Price (GDGM-4022NC)

Product Description

1. Machine technical description

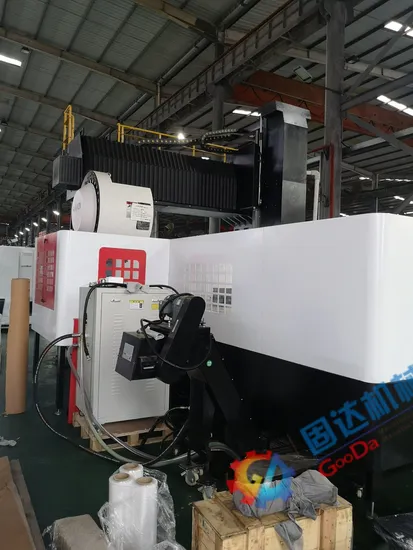

GDGM-4022NC is a fixed beam and fixed column gantry machining center machine tool. It is developed based on the most popular, advanced and flexible machine tool design concepts in the world. It is suitable for aerospace, shipbuilding, power generation, heavy machinery, locomotives, machine tools, and textile machinery. , Printing machinery, automotive covering molds and other industries of various large-scale workpiece machining equipment.
The machine tool's high-strength, high-rigidity design and large-flow chip removal channel structure have the characteristics of high precision, high efficiency, flexibility, and environmental protection.
The machine adopts the gantry structure of moving table. The bed is fixed, the worktable moves in the X direction on the bed; the ram moves in the Z direction on the sliding seat; the sliding seat and the ram move in the Y direction on the gantry beam; the X and Y axes adopt heavy-duty linear rails, Z The shaft is a plastic hard rail. The main shaft assembly is placed at the lower end of the ram; the whole machine has a reasonable layout, beautiful appearance and convenient operation.
Spindle box: We use high-speed BT50 spindle unit with center blowing.
Tool Magazine: We use disc magazine with high quality and stable functionality.
Transmission: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-tensioned and installed to improve transmission rigidity and positioning accuracy.
2. Standard Specification

Model: GDGM-4022NC		Unit	Specification
Process Range	X axis travel	mm	4000
	Y axis travel	mm	2400
	Z axis travel	mm	1000
	Distance from spindle nose to work bench surface	mm	200~1200
	Distance between two columns	mm	2200
Work Bench	Work bench size	mm	4100×1900
	MAX Load	kg	12000
	T-Slot	-	9×22×200
Spindle	Spindle Speed	rpm	6000
	Spindle Taper	-	BT50
	Spindle Motor Power	kW	15/18.5
Speed	Rapid Moving (X/Y/Z)	m/min	12/12/12
	Rapid Feeding Speed	m/min	10/10/10
Tool Magazine	Tool Magazine Number	PCS	24
	Tool MAX Diameter/length/weight	-	φ112mm/350mm/15kg
	Tool MAX Diameter (Full/Empty)	mm	112/200
	Tool selection method	-	Optional
	Tool Changing time (from one tool to another)	S	1.8
Machine Accuracy	(X/Y/Z)Positioning Accuracy	mm	0.030/0.025/0.020
	(X/Y/Z)Re-Positioning Accuracy	mm	0.015/0.012/0.008
Others	Air source/Air pressure	-	280L/min 6~8bar
	Total electrical capacity of the machine	KVA	55
	Water tank capacity	L	420
	Machine size(X×Y×Z)	mm	11000×5000×5000
	Machine weight	kg	34500

Note:Desihn & Specifications are subject to change without prior notice.
The quality of the finished product processing and assembly of all parts of the machine tool conforms to the product drawings and related technical requirements, and its safety standards comply with the relevant provisions of GB15760-2004 "General Technical Requirements for Safety Protection of Metal Cutting Machine Tools", and its accuracy standards comply with GB/T17421-2000 "Machine Tool Inspection General Rules" and JB/T8771-1998 "Machining Center Inspection Conditions" relevant regulations.
3. General requirements
Required environment
Keep the temperature at a balanced level, especially during precise cutting.
Working temperature10ºC~40ºC, when 20ºC, humidity should be around: 40~75%
To keep the static accuracy of the machine within the specified range, the best temperature is within 15ºC~25ºC, and the temperature difference should not exceed ±2ºC/24h.
Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ.
If the voltage in the area is unstable, the machine should be equipped with a regulated power supply to ensure the normal operation of the machine tool.
The machine should have a reliable grounding: the grounding wire should be copper wire, the wire diameter should not be less than 10mm², and the grounding resistance should be less than 4 ohms.
In order to ensure the normal working performance of the machine, if the compressed air of the air source does not meet the requirements, a set of air source purification devices (dehumidification, degreasing, filtration) should be in placed before the machine's air intake.
Keep the machine away from direct sunlight, intense vibration, high heat, high-frequency generators and electric welding machines, etc., to avoid machine production failure or loss of machine tool accuracy.
