Biomass Wood Pellet Machine/Pellet Mill/Wood Pellet Mill/Sawdust Pellet Machine

Product Description

CHINA------------TONY
TONY Environmental Protection Technology Co., Ltd. is a comprehensive enterprise specializing in the research and development, design, production and international trade of biomass pellet machine machinery.
The main products are biomass vertical ring mold pellet machine, flat mold pellet machine, biomass pellet unit, flat mold, ring mold series feed pellet machine, drying equipment, cutting, crushing equipment, organic fertilizer granulation equipment and biomass pellet unit supporting cooling, screening, packaging, mixing and other environmental protection equipment.
Core processing areas: forestry and residual processing, crop straw processing, animal manure processing, etc
Product Description

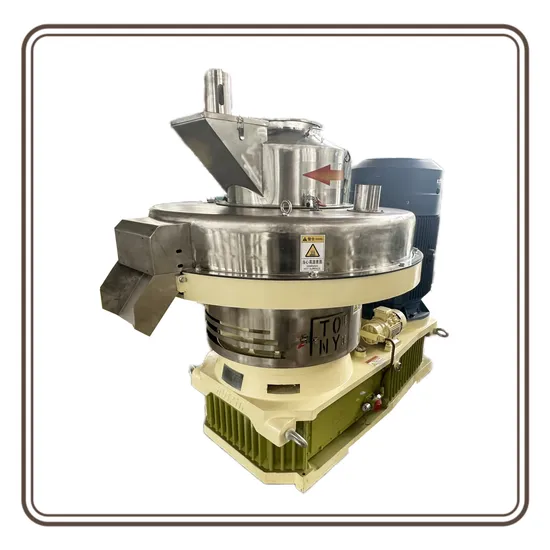

Vertical ring die pellet machine----------TYJ760 160KW 2.5-3T/H
The vertical ring die pellet machine is a production machine that processes eucalyptus, pine, birch, poplar, fruit and straw, and bamboo smash into sawdust to form biomass fuel.Double-layer vertical ring die, 2 rolls are uniquely designed, and the mold is installed vertically. Working principle of the vertical ring die machine is that when the machine is running, ring die is stationary while the roller is rotating. The vertical ring die granulator is mainly suitable for various hardwoods with a variety of raw materials.

Machine advantages:
1)The main machine adopts Zhejiang Huixin's enlarged and widened gear box. The machine itself weighs nearly 8.5 tons, which increases the machine's torque resistance and makes the machine run more stable. The main machine discharge cover, top cover, cutter, lifting knife, and dustproof The covers are all made of 304 stainless steel, which has the advantages of high corrosion resistance and long service life.
The slewing bearing and the dial reducer are placed below. The dial reducer adopts hard tooth surface, which makes the performance more stable and improves the service life of the slewing support. The cutting knife can control the final length of the particles by adjusting the knife distance.
2)The automatic refueling machine adopts a new appearance, which makes refueling more intuitive, making it easier for users to observe the oil level and avoid damage to the machine caused by lack of oil. It is equipped with a galvanized base underneath.
3)The dust removal efficiency of the Shakron is high, and the bottom of the Shakron is equipped with a bucket for collecting dust. After collection, the pressed particles can be reused.
4)The electrical components in the electric control cabinet are from the well-known brand, which has the advantages of high
stability and high safety:
Product Parameters

Model	TYJ760-III
Power(KW)	160
Capacity(T/H)	2.5-3
Size:L*W*H(MM)	2500*1600*2400
Weighet(T)	8500

Raw Materials for making pellets
Raw material: hard wood, waste wood and straws, woodchips(palm, mahogany,rubber tree), bamboo shavings, rice husk, peanut shells, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagasse, palm fiber.Size: Less than 5mm (All the raw materials must be crushed into sawdust before going into pellet machine.If not, you may need a
wood chipper, wood crusher.)Moisture: 10-15% is best for producing good quality pellet.
TONY other product display

Our workshop
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system
FAQQ: What is a pellet mill/pellet machine?A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.Q: What kind of materials can be pelletized?A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.Q: What are pellets used for?A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.Q: What size does my material need to be, to run through the pellet mill?A: All materials must be 5mm or less.Q: What size pellets can I make?A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.Q: Do you ship worldwide?A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.Q: If I purchase a pellet mill, will you show me how to make pellets?A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.
