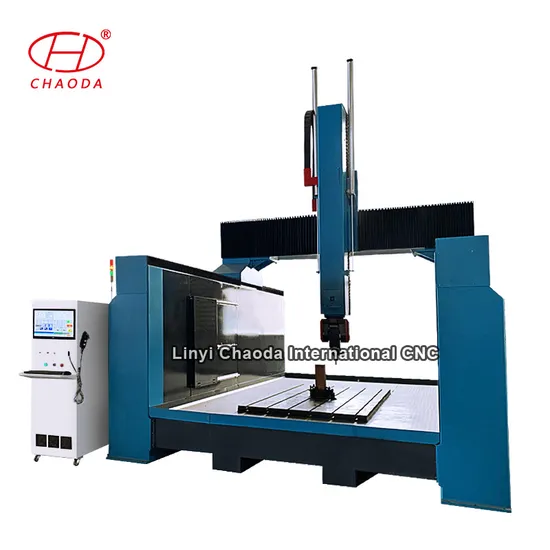

Factory Supply! CNC Router Granite Stone Cutting Engraving Machine 5 Axis
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
JCS1325-5AXIS
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, BV, TUV
Current
AC
Application
Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Construction etc
Customized
Customized
Model
5 Axis CNC Router for Marble Granite Stone
Applications
Marble, Stone, Granite, Glass, Wood, Plastics.
Working Size
1300X2500X1500mm
Table
T-Slot with Water Tank
Spindle Power
11/13.5kw
Driving
Servo Motor and Driver
Inverter
Delta
Control System
Syntec
Xyz
Square Linear Guide Rail
Xy
Rack and Pinion
Z
Ball Screw
Cooling System
Water Cooling
Oil System
Automatic
Weight
12500kg
Voltage
AC380V, 3phase, 50-60Hz
Transport Package
Protected by Film and Fastened with Metal Wires
Specification
5 axis cnc milling machine
Trademark
CHAODA
Origin
Shandong, China
HS Code
8465990000
Production Capacity
100 Sets / Month
Product Description
Factory Supply! CNC Router Granite Stone Cutting Engraving Machine 5 AxisAll machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining.
| Model No. | JC1325-5AXIS |
| X,Y,Z,A,C working size | 1300*2500*1500mm* ±120°* ±245° |
| Whole structure | heavy duty steel wall structure |
| Table surface | T-slot with clamps |
| Spindle | 13.5KW ATC spindle, cooled by liquid |
| Tool magazine | Linear type automatic tool changer, with 8pcs tool magazine |
| Driving system | Japan YASKAWA servo motor and driver |
| Inverter | Delta |
| Operating system | 5 axis Syntec (option:OSAI) |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Running environment | Temperature: 0ºC-45ºC; Relative humidity:30%-75% |
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate,
Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
