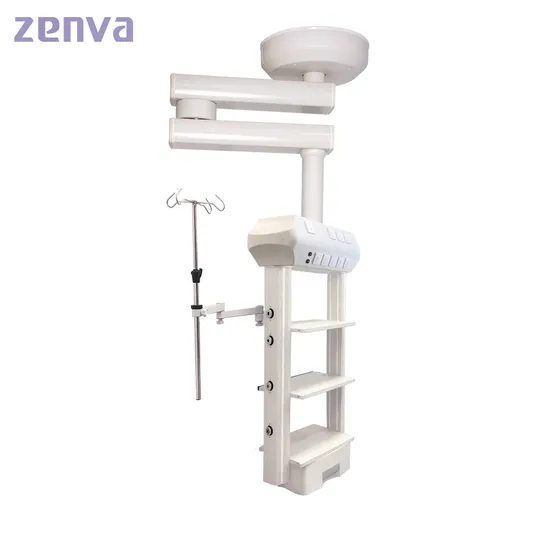

Surgical Equipment Ceiling Surgical Pendant Hospital Use ICU Column Type Medical Pendant

Surgical Equipment Ceiling Surgical Pendant Hospital Use ICU Column Type Medical Pendant

US$1,200.00-2,800.00 1 Set (MOQ)

Basic Info.

Model NO.
EX-IL-D
Certification
CE, ISO13485, ISO9001
LCD Display
Without LCD Display
Trademark
Zenva
Origin
Shanghai, China
HS Code
9405409000
Production Capacity
200/Month

Product Description


Detailed Technical Parameter
1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on
2. is available in single and double arm configurations .Each joint has a rotation range up to ≤350 degree.
3. ceiling
4. pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. one arm, can rotation, rotation angle≤350 degree.
6. high-strength aluminium alloy,wear-well reduce your cost
7. pendant color blue ,red and so on
8 pendant dimension can customize
9. medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.
10. can horizontal rotation ,cannot lift
Product Description
Item
Parameter
Mark
Rotary arm length
750-1000mm (customer can customize arm length)
Length is optional
Rotary radius
≥750mm

Net loading capacity
≥180kg

Equipment shelves loading capacity
≥60kg

standard configuration
O2*1 ,Air*1,Vac*1,socket*6,tray*2,drawer*1
Standard optional
Level degrees rotation
≤340 º

Terminal box
≤340 º

Box length
≥700mm
Length is optional
