Basic Info.
Nature of Operation
Transmitting Antenna
Operating Wavelength
Microwave
Polarization
Horizontal Polarization
Sturcture Form
Wire Antenna
Usage Occasion
Base Antenna
Place of Origin
Shen Zhen, China
Frequency Band
100-1000MHz
Cable Length
1m/3m/5m/Customized
Specification
Ф 113*480mm
Production Capacity
100000PCS
Product Description

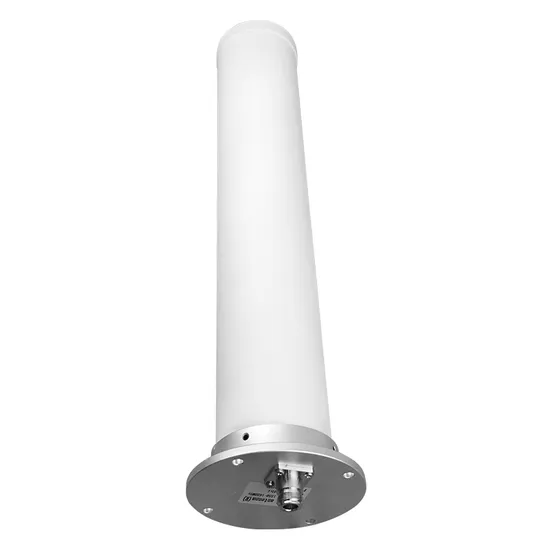

2.4G 4G Lte 5G N Female 100W high power 11dbi Multi-surround coil surround Helical Antenna
Product Description
This is a kind of Helical antenna mianly used in signal transmit field ,it is a high power high gian antenna can reach over 100W 11dbi ,and using PVC material that can operate outdoors not influenced by complex environment .And it produced by Shen Zhen Texin Electronic Co.,Ltd natenna factory that all frequency band and power can be customized .Shen Zhen Texin electronic Co.,Ltd devoted provide high quality good to all around world customers .
Service
TX provides professional after-sales service, including equipment installation, commissioning, use training, etc. And all products enjoy 1-year warranty and lifetime maintenance service.
TX have professional salesman which can offer the best solution to the clients .
TX devoted in provide high quality goods to customers that every product will be test.
| No. | Item | Data | Unit |
| 1 | Frequency | 2.4G/5.8G/WIFI/868/915/920MHZ | MHz |
| 2 | Power | 100 | W |
| 3 | Gain | 11dbi | A |
| 4 | Type | LoRa/LPWAN Antenna | |
| 5 | Place of Origin | ShenZhen,China | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | N / Female |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) |
| 9 | Standard input | 0-10 | dB |
| 10 | Polarization | Horizontal |
| 11 | Mounting way | Pole-holding |
| 12 | Out shell Size | 177*84*26 | mm |
| 13 | Mount hole | 170*78 | mm |
| 14 | Weight | 733 | g |
| 15 | Work Temperature | -40~+65 | ºC |
| 16 | Out shell material | PVC |
| 17 | Vibration need | Car load OK |
