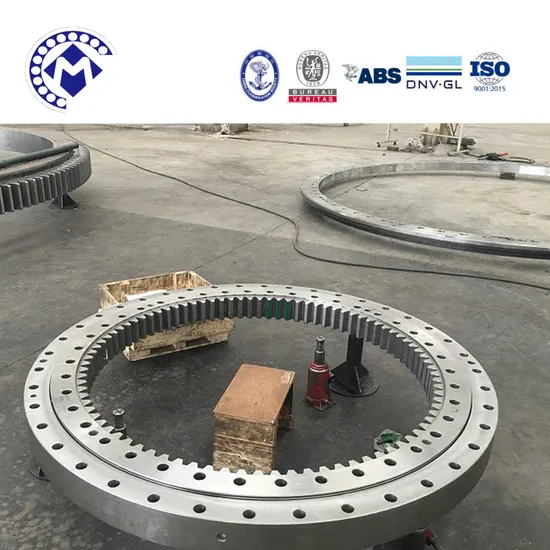

Rks. 162.16.1424 Filling Machine Swing Bearing Slew Ring Bearing Geared Slewing 1509*1292*68mm

Product Description

RKS.162.16.1424 Filling machine swing bearing slew ring bearing geared slewing 1509*1292*68mm
Four-point contact ball slewing turntable bearings
consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force, radial force and overturning moment at the same time, has strong dynamic load.
Single row cross roller slewing bearing
Composed of two or three rings. compact structure, light weight, high manufacturing accuracy, small assembly gap and high requirement for installation accuracy. Rollers are 1:1 cross-arranged. Can be bear axial force, overturning moment and large radial force at the same time,and widely used in lifting transportation, construction machinery and precesion products.
Double row ball slewing bearings
This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Three row roller slewing bearing
Three row roller bearing able to bear all kinds of loads at the same time, it is the largest one of the four structural products with large axle and radial dimensions and firm structure. Especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret,large tonnage truck crane,heavy machinery and so on.
https://lymcbearing00.en.made-in-china.com/product-list-1.html

Type	• Single row four point contact ball slewing bearing • Single row crossed cylindrical roller slewing bearings • Double row ball slewing bearings •Double row Roller/ball combination slewing bearing •Three-Row Roller Slew Ring Bearing
Rolling elements	Steel ball / Cylinder Roller
Rolling elements Material	GCr5/GCr15SiMn/Customized
Bearing Material	50Mn/42CrMo/42CrMo4V /Customized
Cage Material	Nylon/ steel /copper
Structure	taper pin , Mounting holes,Inner ring ,grease fitting,load plug, seals , roller ,spacer balls or separators
Outer diameter	50-10000mm
Bore size	50-10000mm
Mounting hole	Through hole/Tapped hole
Raceway hardness	55-62HRC
Inner and outer ring modulation hardness	229-269HB/Customized
Gear type	No gear ,Internal gear , External gear.
Embellish grease	EP2 lithium lubricating grease
Certificate	ABS.BV,DNV,ISO9001,GL,3.1,3.2
Application area	Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator
Brand Name	LYMC
Place of Origin	Luoyang Henan
Warranty	12 months
Payment term	T/T is our first choice
Packing details	1,Filling with anti-rust oil 2.Corved with Plastic paper 3.Corved with kraft paper 4.Corved with Blue tie 5.Put in wooden box

Product Process
Application:
- Excavators - Drilling rigs - Mining Equipments - Cranes -Offshore Equipments - Vehicles - Machine Tools - Wind Turbines
About Us:
Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Our team with technical and full experience in the bearing industry.
*Professional in researching, developing, producing & marketing high precision bearings for 16 years;
*Many series bearings are on stock; Factory directly provide, most competitive price;
*Advanced CNC equipment, guarantee product accuracy & stability;
*One stop purchasing, product include cross roller bearing, rotary table bearing, robotic bearing, slewing bearing, angular contact ball bearing, large and extra large custom made bearing, diameter from 50~9000mm;
*Excellent pre-sale & after sale service. We can go to customers' project site if needed.
*Professional technical & exporting team ensure excellent product design, quotation, delivering, documentation & custom clearance.
Our Service:
FAQ:
1.Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 20 years' experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in
stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
