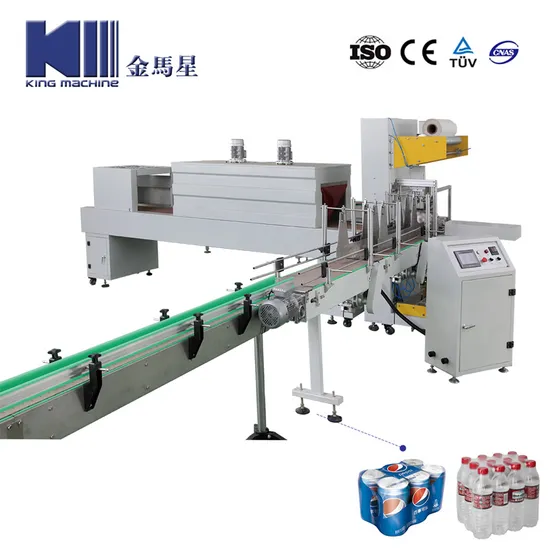

Stainless Steel Chain PE Film Bottles Shrink Packing Machine

Product Description

Automatic PE film shrink wrapping machine
PE film group packing machine is suitable for wrapping of such products as pop-top,mineral water ,bottles,beer,drinks etc without bottom-tray ,working with PE shrink tunnel to pack the goods perfectly ,the whole producing process adopts the Germany advanced technology,And the main parts are imported from international famous company ,Capability stable and using long-time
Function :It can connect with the filling line directly by conveyor system,All process from bottle feeding ,packing ,sealing ,cutting can works automatically
Product description:
·Frequency control,Secondary bottle transport device.
·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
·Inductive switch control film length.
·Touch screen,PLC control system advanced reliability of the equipemtn function.
·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
·Strong cooling system can reassure finalize the design quickly.
·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
·Frequency conversion timing net transportation structure.
·The height of the conveyer belt can be made according to the user,adustable range±50mm
·Bottle transport machine can satisfy the direction of the user,it can prolong and shorten
·Pterygoid stainless iron heating system,durability.
·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
Technical parameters:
Outline dimension of the equipment:L5050*W3300*H2100mm
·The largest dimension of the wrappage:L600*W400*H350mm
·Material of shrink film:PE,PVC
·Thickness of shrink film:0.03-0.15mm
·The highest temperature of the heat shrink furnace: 160-260. Can adjust freewill.
·The maximum production per minute:0-12 pakage
·Equipment capacity: 20kw
·Actual power consumption:15Kw/hour
·Equipment weight:1.2T
