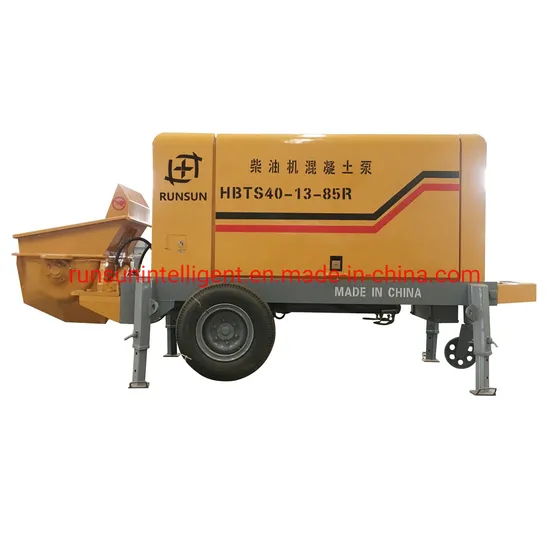

Hbt40r Diesel Engine Stationary Concrete Pump
Basic Info.
Model NO.
HBT40, HBT40R
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
50m²/h
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Power Type
Diesel Engine, 85kw
Theoretical Concrete Output
28/40 M³/H
Concrete Outlet Pressure
7/13 MPa
Concrete Slump
120-230 mm
Max. Aggregate Size
Pebble≤40 mm, Gravel≤30 mm
Distribution Valve
S Tube Valve
Delivery Steel Pipe Diameter
125mm or 150mm
Speed
2300 R/Min
Concrete Cylinder Diameter * Stroke
D100*1200 mm
Conveying Cylinder Diameter * Stroke
D180*1200 mm
Oil Tank Capacity
250 L
Hopper Capacity
0.8 M³
Maximum Conveying Distance (Horizontal
300/100m
Pipe Cleaning Mode
High Pressure Water Washing
Overall Dimension
5000×2000×2200 mm
Transport Package
Nude Package and Packaged in Container
Specification
HBT40, HBT40R
Trademark
RUNSUN
Origin
Hebei
HS Code
8413400000
Production Capacity
150 Sets/Month
Product Description
Technical Parameters| Model | HBT40 | HBT40R |
| Max Theoretical Concrete Output (Low/High pressure) (m³/h) | 28/40 | 28/40 |
| Max Concrete Pumping Pressure (Low/High pressure) (Mpa) | 7/13 | 7/13 |
| Concrete Slump | 120-230 | 120-230 |
| Aggregate Size (mm) | pebble≤40 gravel≤30 | |
| Power (KW) | Electric motor 55 | Diesel Engine 85 |
| Speed (r/min) | 1480 | 2300 |
| Conveying Cylinder Diameter (mm) | Ø 100/1000 | Ø 100/1200 |
| Concrete Cylinder Diameter (mm) | Ø 180/1200 | Ø 180/1200 |
| Hydraulic Oil Tank Capacity (L) | 250 | 250 |
| Hopper Capacity (m³) | 0.8 | 0.8 |
| Fuel Tank Capacity (L) | 150 | |
| Filling Height (mm) | 1400 | 1400 |
| Maximum Conveying Distance (Horizontal Distance/Vertical Height) (m) | 200/80 | 300/100 |
| Pipe Cleaning Mode | High Pressure Water Washing | |
| Overall Dimension (mm) | 5000×2000×2200 | 5500×1800×2100 |
| Total Weight (kg) | 4300 | 4200 |
Main Components' Brand or Manufacturer:
HBT40 CONCRETE PUMP (Electric Motor)
| Item | Brand or Manufacturer | Place of Origin |
| Electric Motor | Jiangsu lideer | China |
| Main Oil Pump | KAWASAKI140 | Korea |
| PLC | Mitsubishi | Japan |
| Oil Cylinder | Hunan XIELI | China |
| Concrete Cylinder | Wuxi Shuangyu | China |
| Hydraulic hose | Manuli | Italy |
| Main Valve | BolSeen | Germany |
| Hydraulic oil - HML-46 | Beijing CHANGCHENG | China |
| S Valve | RUNSUN | China |
| Glass Plate & Cutting Ring | Zhuzhou ZHENXIANG | China |
HBT40R CONCRETE PUMP (Diesel Engine)
| Item | Brand or Manufacturer | Place of Origin |
| Diesel Engine | Yuchai | China |
| Main Oil Pump | KAWASAKI140 | Korea |
| PLC | Mitsubishi | Japan |
| Oil Cylinder | Hunan XIELI | China |
| Concrete Cylinder | Wuxi Shuangyu | China |
| Hydraulic hose | Manuli | Italy |
| Main Valve | BolSeen | Germany |
| Hydraulic oil - HML-46 | Beijing CHANGCHENG | China |
| S Valve | RUNSUN | China |
| Glass Plate & Cutting Ring | Zhuzhou ZHENXIANG | China |
HBT40R Diesel Engine Stationary Concrete Pump
Runsun Intelligent Technology Co.,ltd is a specialized manufacturer of various mortar and concrete machine. such as mortar mixer, concrete mixer, mortar grout pump, mortar spraying machine, concrete pump, fine stone shotcrete pump, concrete mixer pump and so on. We have more than 30 years' experience in designing and manufacturing mortar and concrete machine. Our machine exported more than 300 sets different types of the concrete pump (Driven by Diesel Engine and Electric Motor, Discharging Volume from 12 m3/h to 90 m3/h) to over 72 countries. Our main customers are from Australia, Colombia, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc. Widely used in used in high-rise building, high-speed railway, bridges, tunnels and so on.
Technical Advantages
1) High quality concrete pump trailer equipped with high efficiency concrete pumping system.
2) Hydraulic double-cylinder piston system, more stable flow, more uniform and stable spraying.
3)Dual-piston alternately working, manual and automatic hydraulic synchronous lubrication system, longer mortar piston life.
4) Advanced hydraulic system.
5) Further optimized pumping flow path to reduce the pumping resistance and the probability of tube block. Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
Working Applications Fields:
